Lesko LW SD 2016 roll to roll Laminating Die cutting (2016)

Flexo Roll to roll Machine

Stato attuale: In production

Last updated: 28-02-2023 | Viewed: 1028 times - Enquiry's: 14

PD Ref: 107012

Anno: 2016
Max.formato: 65 x 38 cm (25 x 14 inch)

Descrizione:

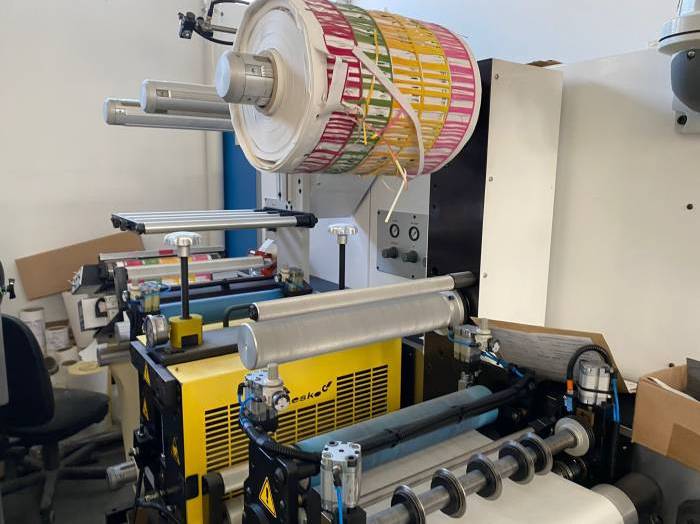

Modular machine for the production, packaging and die-cutting of labels - Lesko 380LW.sd
The machine was purchased in February 2016. Counter reading: 1985 operating hours.

Specification of the Lesko 380LW.sd machine

Technical data:
Max web width 380mm
Max speed 220m/min
Max speed when working in semi-rotary mode 45m/min
Supply voltage 3 x 400V/50Hz
Installed power ~15 kW
Air demand approx. 1 m3/h, 0.6 mp
Dimensions (L x W x H) 3200 x 1350 x 1800
Estimated weight 2500 kg.

Pneumatic binding table
Microprocessor control - 8' touch panel on the arm
Electronic counter (label (clearance) and linear meters)
Counter of rolls made, daily meter counter, total counter)
Electronic web edge guidance (BST-international)
Smooth adjustment of the web guiding sensor
Precise tension adjustment on winding and unwinding
Electronic correction of the web tension on unwinding
Roll end sensor

(module 1)
Unwinding:
Max roll diameter 650mm
Pneumatic clamp 76mm
Pneumatic table for splicing the web
Dynamic web tension adjuster
Electromagnetic brake (powder)
Laminating section:
Max unwinding diameter 450 mm
Max winding diameter 450 mm
Automatic correction of laminate tension

(module 2)

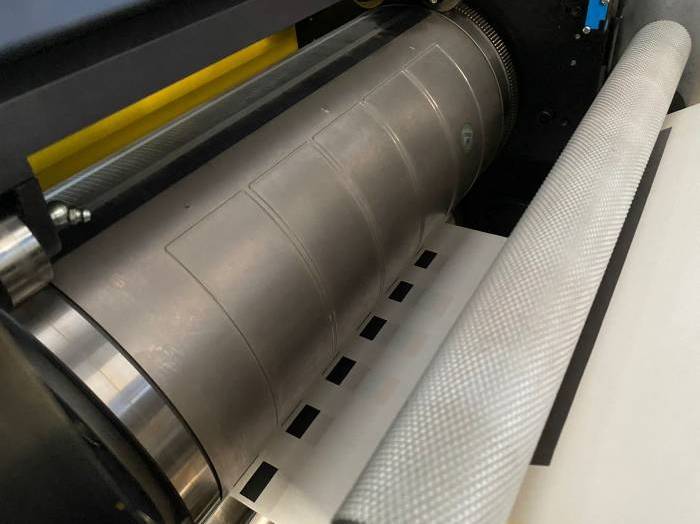

Die-cutting station (rotary or semi-rotary off-line):
LESKO – 380 – SEMI-ROTATION station
Max. material width when die-cutting 380 mm (16'')
Max cylinder circumference 192z 1/8'' (24'')
Punching roller pressure control system
Speed control station (nip roll)
Pneumatic clamp

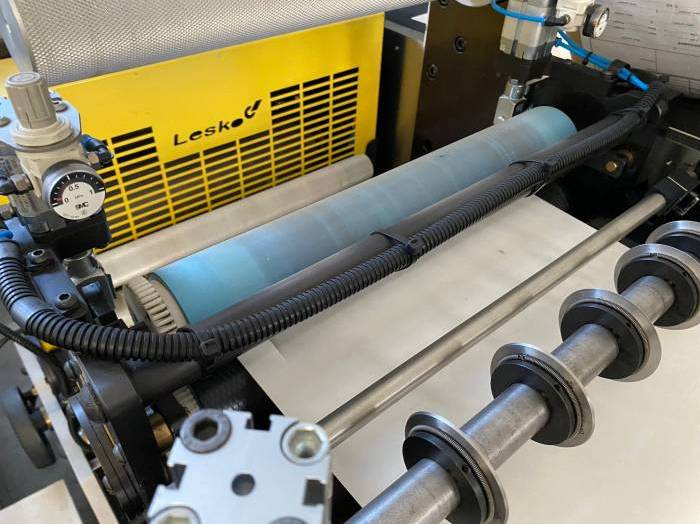

3G circular knife station (3 blades included)
winding
One 76mm rewinder
Additional winder 40mm
Easy change of winding direction
Simple shank diameter change
Max winding diameter (one winder) 650mm
Pneumatic clamp
Servo system with tension correction
