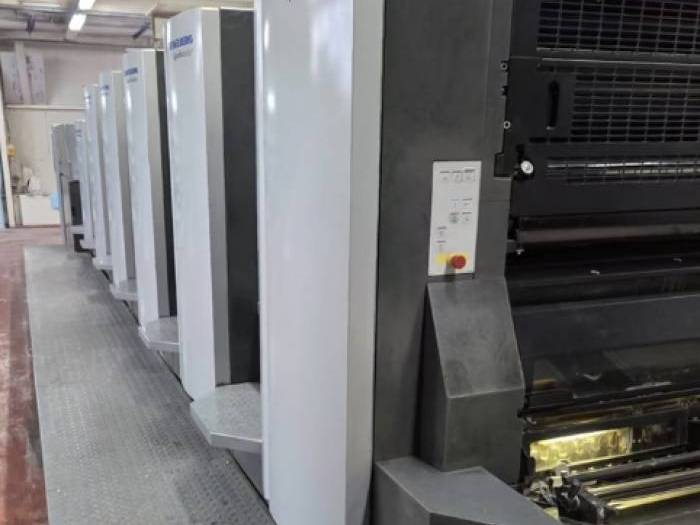

Heidelberg CX102-5L (2019)

---

Anno: 2019
Max.formato: 102 x 74 cm (40 x 29 inch)
Colori: 5
Impress.Count:75 mio

---

Extras: Autoplate - Digital Controls - Touch-screen Control - Coater - Autosize - Dryer - CIP

Descrizione:

Heidelberg Speedmaster CX 102-5 LX2
Printing Materials / Sheet Formats
- Maximum sheet size: 720 × 1,020 mm
- Minimum sheet size: 340 × 480 mm
- Maximum printing area: 710 × 1,020 mm
- Maximum coating area: 710 × 1,020 mm
- Gripper margin: 10–12 mm, continuously adjustable
- Substrate thickness: 0.03–1.0 mm
- Maximum production speed: 16,500 sheets/hour
- Minimum production speed: 3,000 sheets/hour
- Inching speed: 5 rpm
- Printing plate size: 790 × 1,030 mm
- Printing plate thickness: 0.2–0.3 mm
- Plate cylinder undercut: 0.12 mm
- Distance from leading edge of plate to start of printing: 43 mm and 52 mm are both specified in the technical data sheet.
- Coating plate size: 780 × 1,030 mm
- Reinforced coating blanket size: 800 × 1,048 mm
- Coating plate thickness: Depending on type, commonly 1.14 / 1.16 mm
- Coating blanket thickness: 1.95 mm
- Coating blanket cylinder undercut: 3.2 mm
- Distance from leading edge of plate to start of coating: 43 mm
- Unbarred rubber blanket size: 800 × 1,052 mm
- Reinforced rubber blanket size: 840 × 1,052 mm
- Packing sheet size: 735 × 1,030 mm
- Rubber blanket thickness: 1.95 mm
- Blanket cylinder undercut: 2.3 mm
- Press Center 2/XL 2 Instant Gate
- Press Center 2/XL 2 Color Assistant Pro
- Press Center XL 2 Netprofiler
- Press Center XL 2 Wallscreen Application
- Press Center 2/XL 2 Performance Benchmarking
- Prinect Pressroom Manager
- Prinect Integration Manager
- Server T130-S9
Quality Control – Prinect Inpress Control 2
According to the specification sheet, the machine is equipped with Prinect Inpress Control 2
- Spectrophotometric colour measurement of process and spot colours in the print control strip.
- Patented colour control based on spectral measurement values.
- Display of Delta E, ink density, slurring/doubling, and tonal value increase.
- Integration with Intellistart and Color Assistant Pro.
- HKS and PANTONE spot-colour libraries.
- Fully automatic inline measurement and control of colour and register.
- External handheld spectrophotometer.
- Automatic documentation of print colour quality.
The machine is equipped with a chamber doctor blade coating unit for consistent and reproducible inline finishing.
- Remote-controlled coating register.
- Circumferential register adjustment: ±2 mm.
- Lateral register adjustment: ±2 mm.
- Diagonal register adjustment: ±1 mm.
- Remote-controlled impression engagement.
- Fine adjustment between the anilox roller and coating plate cylinder.
- Lifting device for anilox roller replacement.
- Specially treated, corrosion-protected and wear-resistant cylinder surfaces.
Additional Chamber Doctor Blade System
A high-quality chamber doctor blade system for the final coating unit is also specified.
- Doctor blade chamber.
- Interchangeable anilox roller.
- Coating collection tray with level sensors.
- Quick-change system for doctor blades.

---

Localisata: Europe Western

---

---

Disponible: 10-2026

---

---

---

---

---
