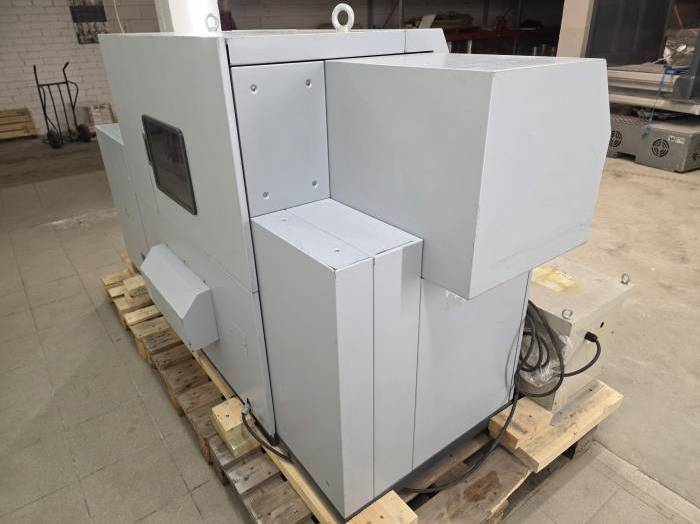

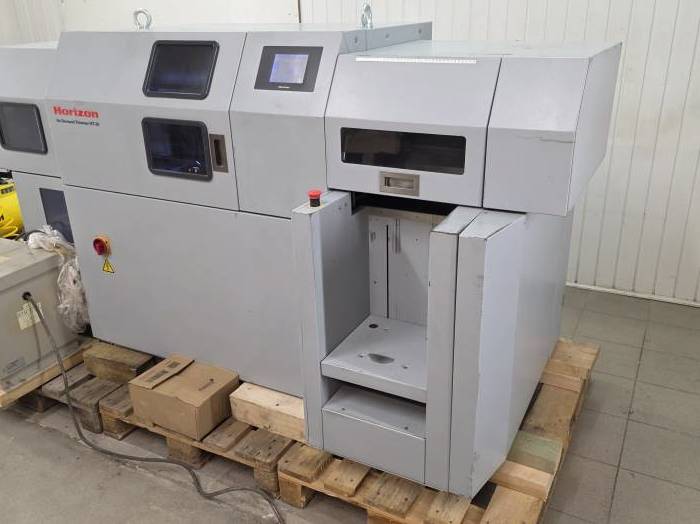

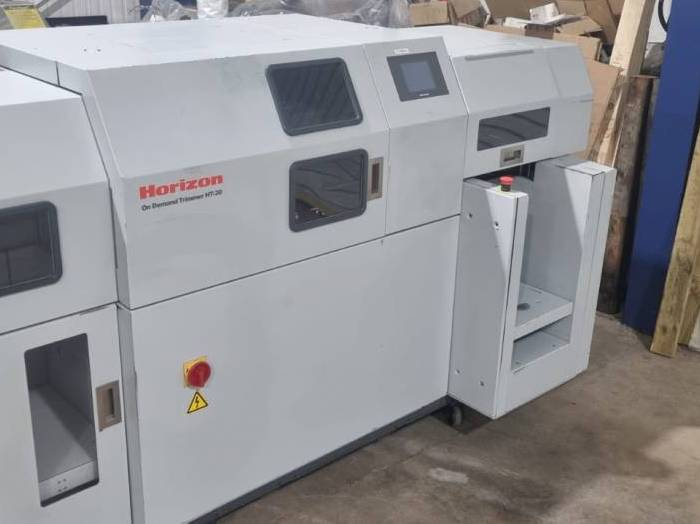

Horizon HT 30 Trimmer (2010)

---

Anno: 2010
Max.formato: 32 x 23 cm (12 x 9 inch)

---

Descrizione:

Horizon HT-30 three knife trimmer
technology: touch and work
Year: 2010

Description:
Untrimmed Book Size:
Spine Length × Fore-edge Length
Max. 320x235 mm / 12.600” x 9.255”
At maximum by using the optional cutting module for landscape size
Max. 320x233.8 mm / 12.600” x 9.200”
at maximum by using the optional cutting module for A6 size
Min. 204x136 mm / 7.870” x 5.350”
Min. 152x136 mm / 5.985” x 5.350”
At minimum by using the optional cutting module
Min. 152x107 mm / 5.985” x 4.210”
At minimum by using the optional cutting module for A6 size
Finished Book Size:
Spine Length × Fore-edge Length
Max. 305x230 mm / 12.010” x 9.055”
Max. 305x300 mm / 12.010” x 11.810”
At maximum by using the optional cutting module for landscape size
Max. 305x133.9 mm / 12.010” x 5.275”
At maximum by using the optional cutting module for A6 size
Min. 200x134 mm / 7.870” x 5.280”
Min. 148x134 mm / 5.830” x 5.280”
At minimum by using the optional cutting module
Min. 148x105 mm / 5.830” x 4.130”
At minimum by using the optional cutting module for A6 size
Landscape book size is A4, B5, A5, 8.5” x 11”, 7” x 8.5”
(by using the optional cutting module for each
landscape size)
Trim Width Max. 99.9 mm / 3.930”
Min. 2.0 mm / 0.080”
Trim Height Max. 51 mm / 2.0”
Book Pile Height
Clamp System and Pressure: Hydraulically Operated
Automatic Settings : 4kN / 5.5kN / 8kN 3 Steps Selectable
Manual Settings : 1.5kN / 3kN / 5kN / 6.5kN / 8kN 5 Steps Selectable
Production Speed
Max. 440 books per hour (Book Thickness 25 mm, 2 piled books)
Max. 520 books per hour (Book Thickness 10 mm, 5 piled books)
Voltage / Frequency
3-phase 400 V, 50 / 60 Hz / 1,25 kw
weight: 1.020kg
Machine Dimensions: W 2350 x D 1160 x H 1370 mm / W92.6” x D45.7” x H54.0”

---

Localisata: Europe Central

---

---

Disponible: Immediately

---

---

---

---

---
