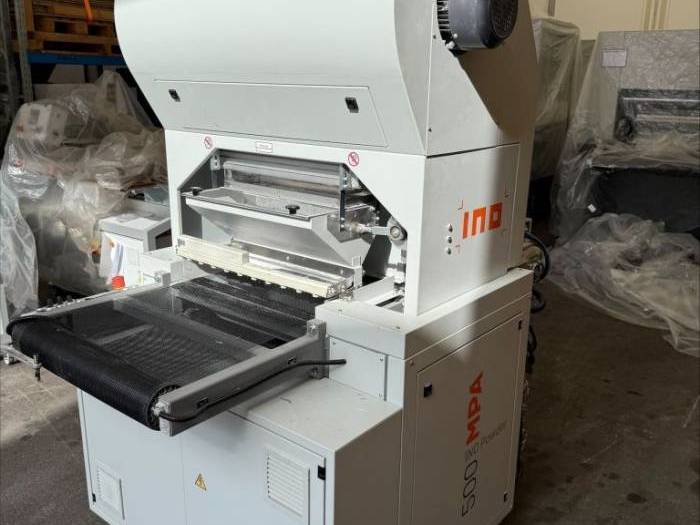

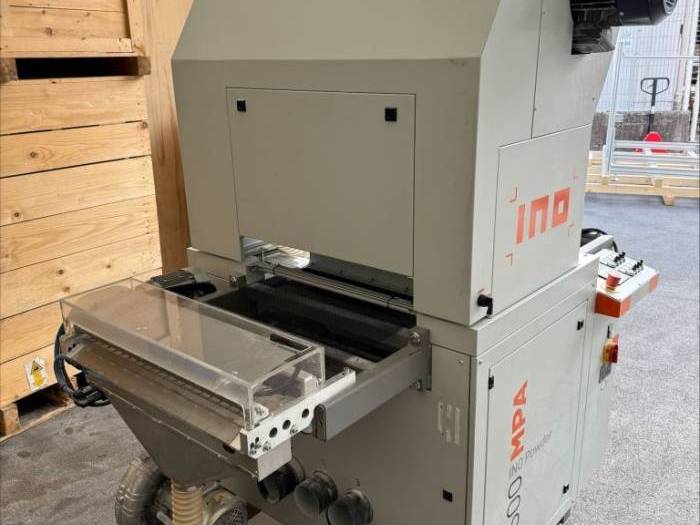

Ino MPA 500 - melt powder application machine (2017)

Serigrafia Machine

Stato attuale: In production

Last updated: 11-12-2025 | Viewed: 165 times - Enquiry's: 0

PD Ref: 136544

Anno: 2017
Max.formato: 50 x 0 cm (19 x 0 inch)
Colori: 1

Descrizione:

Melt powder application machine POWDER MPA 500

Anti-static conveyor belt to maintain a smooth sheet transport with uniform powder coat application
Frequency controlled motors with variable drive speed
Dual vacuum extraction system, acting from top and bottom of the passing sheet, to provide highly-effective removal of excess powder
Quick change-over between different powder types
Preset parameters for application of different powder types
Laser sensors, reading the sheet pass – for continuous operation or »start & stop« application mode
Brush roller on exit

Technical data:

max sheet width 500 mm
conveyor belt width 540 mm
max material thickness 2 mm
powder range 80 - 200 μm with antistatic treatment
conveyor belt height 940 ±25 mm
conveyor belt speed 0 – 10 m/min
