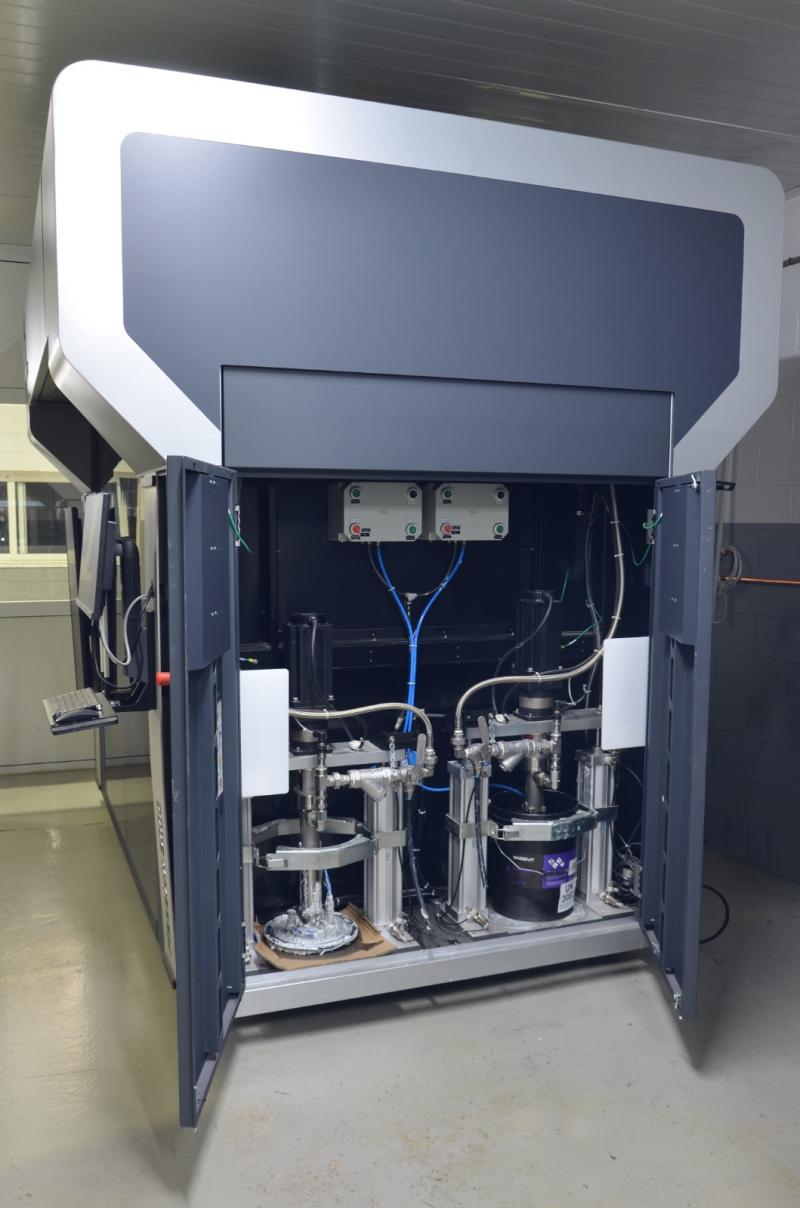

Massivit 3D 5000 3D Printer (2023)

Stampante 3D Machine

Stato attuale: In production

Last updated: 17-03-2026 | Viewed: 124 times - Enquiry's: 0

PD Ref: 139679

Dealer Ref.# 301430

Anno: 2023
Max.formato: 180 x 145 cm (70 x 57 inch)

Descrizione:

Working hours: 70 hours

3D printing machines for large format

Printing Technology: Gel Dispensing Printing GDP - Photocurable gel extrusion printing

Materials: Dimengel patented photocurable gel

BUILD VOLUME:

Maximum Print Volume:

X-axis: 1450 mm

Y-axis: 1110 mm

Z-axis: 1800 mm

Total Volume: 1.65 cubic meters

PRINT SPEED:

Maximum Print Speed: Up to 300 mm/second depending on the size and geometry of the part

PRINT RESOLUTION:

X/Y axis resolution: 1.4 mm

Z-axis resolution: 1.3 mm

Layer thickness: 0.85 - 1.5 mm

EXTRUSION SYSTEM:

Number of print heads: 2 independent print heads allows printing multiple objects simultaneously or with different materials

Extrusion system: High capacity for large volumes of photocurable gel

PRINTING MATERIALS:

Material type: Dimengel 100, Dimengel 90, and other proprietary photocurable materials

Material properties:

Fast curing under UV light

Materials for applications such as large prototypes, molds, displays, and functional parts

Material colors: Various gel colors, including transparent options

INTERFACE AND CONTROL:

Control screen: 10.1-inch color touchscreen

Connectivity: Ethernet, Wi-Fi

Software: Massivit SMART slicer

Optimizes material usage and print time

Compatible with STL and OBJ files

FEATURES PRINTING FEATURES:

Hollow Printing: Enables printing with thin walls and hollow structures for material and weight savings

Fast Printing: Ability to create large models in hours instead of days, ideal for large-scale displays and prototypes

POST-PROCESSING:

UV Curing: Integrated inline UV curing system, allowing immediate curing of printed parts

Finishing Options: Parts can be sanded, painted, or subjected to other post-printing treatments

APPLICATIONS:

Advertising and visual displays

Large-scale rapid prototyping

Mold and composite part production

Automotive, marine, architectural, and more

POWER SUPPLY:

Voltage: 230V AC single-phase

Power Consumption: 5.5 kW

OPERATING ENVIRONMENT:

Operating Temperature: 15-30°C

Relative Humidity: 30-70% without condensation
