Horizon Stitchliner 5500 (2005)

Cucitrici a sella Machine

Stato attuale: In production

Last updated: 12-05-2026 | Viewed: 87 times - Enquiry's: 0

PD Ref: 141320

Dealer Ref.# 23240A

Anno: 2005
Max.formato: 50 x 35 cm (19 x 13 inch)

Important: Good

Descrizione:

Horizon StitchLiner SL-5500

The Horizon StitchLiner 5500 is a powerful all-in-one solution for booklet production. It combines collating, creasing, folding, stitching, and three-knife trimming in a single, efficient process. With its user-friendly operation, high productivity, and versatility, this system offers numerous benefits for print shops, binders, and on-demand printing.

This StitchLiner 5500 includes the following components:
- 1x VAC-100a, 1x VAC-100m Collators

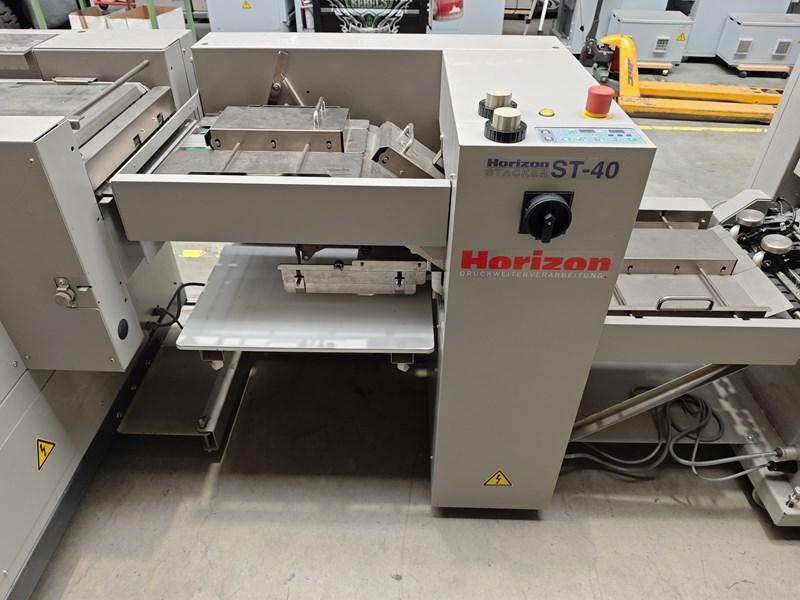

- 1x ST-40
- 1x ACF-30
- 1x SPF-30

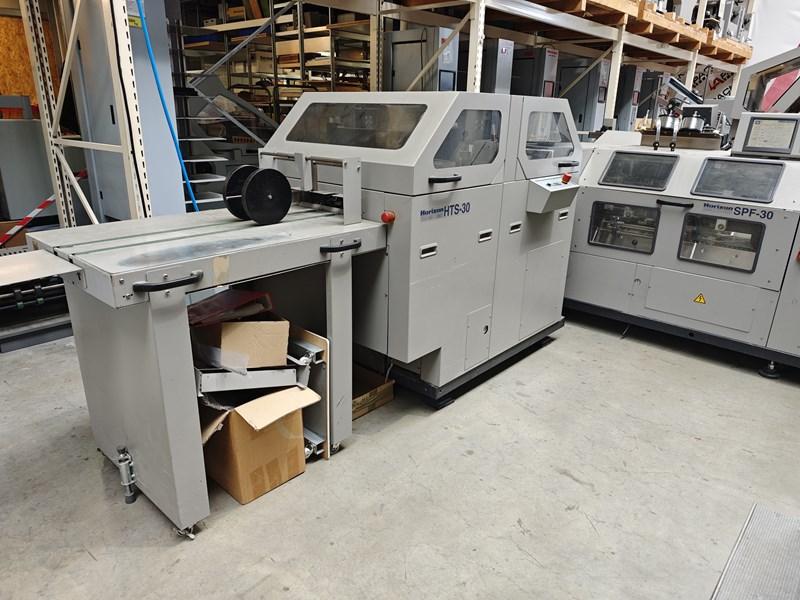

- 1x HTS-30

Key Features:
- 20 stations
- Inline production from collating to finished product
- Variable data processing: Handles personalized prints and variable page counts, ideal for digital printing
- Fully automatic format adjustment for quick job changes
- Touchscreen for user-friendly operation, even for less experienced operators

Specifications:
- Sheet sizes: Max. 500 x 350 mm, Min. 148 x 120 mm
- Paper weight: 40-350 gsm
- Processing thickness: 8-200 pages max. 5 mm spine thickness
- Production speed: Up to 5,500 booklets/hour
- Stitch distance: 60-150 mm

Technical Details:
- Trimming untrimmed : Max. 350 x 250 mm, Min. 140 x 103 mm
- Trimming trimmed : Max. 312 x 230 mm, Min. 120 x 95 mm
- Power supply: 400V / 50Hz
- Space requirement: Min. 5,709 x 3,240 mm
- Total weight: Approx. 2,500 kg

All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.

Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price
