Horizon SB 09 VF (2019)

Brossuratrici Machine

Stato attuale: In production

Last updated: 27-05-2026 | Viewed: 129 times - Enquiry's: 2

PD Ref: 141723

Anno: 2019
Max.formato: 66 x 40 cm (25 x 15 inch)

Latest Enquiry for this machine was from India.

Descrizione:

Perfect Binding Horizon SB-09VF

Type: Single-clamp perfect binder
Application: Milled / sewn book blocks (Pulcini)

Formats
Min: A6
Max: A4
Spine thickness: up to 10 cm

Gluing system
Glue: Hotmelt (EVA) – NO PUR
Pre-melter: 20 kg

Spine preparation
Milling notching brushing
Integrated dust extraction

Cover feeding
Automatic with centering

Trimming

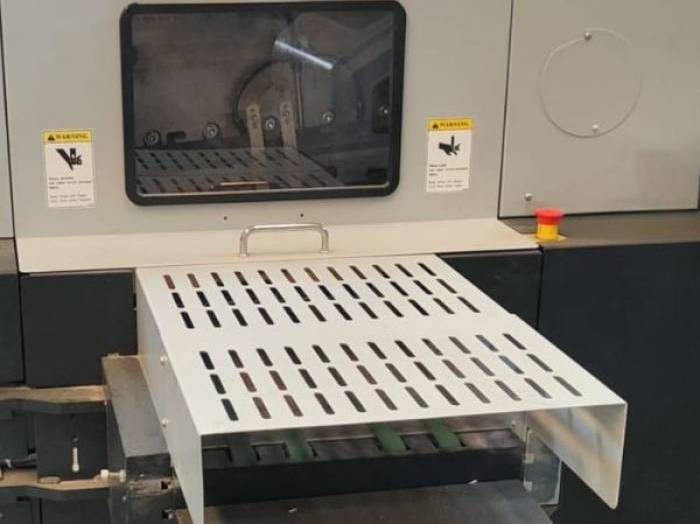

Three-knife trimmer: HT110
3-side trimming

Transport

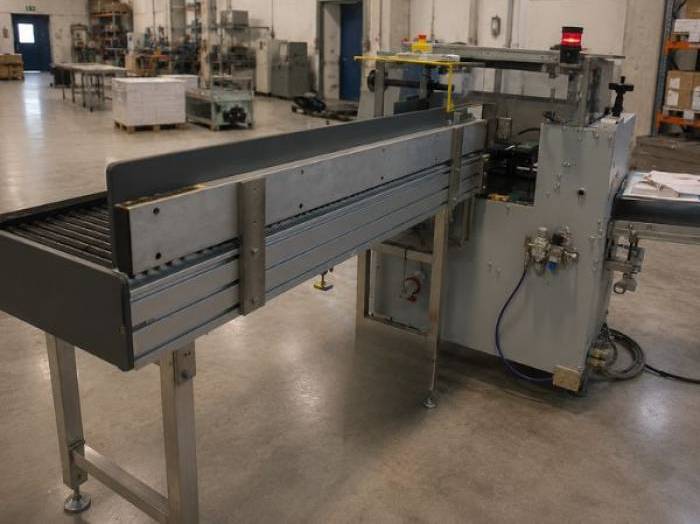

Conveyor: 8 meters
2 meters to stacker

Delivery
Automatic stacker

Automation
Txnet system
Barcode reader connection

Production
Up to 600–1,000 cycles/hour

Power supply
400V three-phase
Compressed air required

Main application PXNET PX-CORE – 1 pc
Interface board PXNET PX-IF – 1 pc
Barcode reader PX-BR – 1 pc

Large size cutting table set Horizon HT110 CP-FLX – 1 pc
A6 cutting table set Horizon HT110 CP-A6X – 1 pc

Pressing set A6 PP-A6X – 1 pc
Pressing set A5E PP-A5EX – 1 pc
Pressing set PP-FSX – 1 pc
Pressing set PP-FLX – 1 pc
Pressing set PP-A4EX – 1 pc
Pressing set FS – 3 pcs
Pressing set FL – 3 pcs
Pressing set A4E – 1 pc

TB Cutting Stick Soft – 10 pcs
FE Cutting Stick Soft FS – 10 pcs
FE Cutting Stick Soft FM – 10 pcs

Press Board FS – 10 pcs
Press Board M – 10 pcs

Tecnograf Bookpacer – 1 pc
Hot melt glue granules (perfect binding) – 20 kg
Feeding unit SB09 S-09S – 1 pc
Horizon perfect binder SB-09VF – 1 pc
Glue tank SB09 MU-09EVA – 1 pc
Alternating transport belt LD-09T – 1 pc
Milling dust extractor DB-15 – 1 pc
Pre-melting glue tank PM-20II – 1 pc
Kit for PM-20II CN-09 – 1 pc
Book measuring device (input) SI-17 – 1 pc
Fume extractor SB09 VS-17 – 1 pc
Fume extraction kit SB-09 VSP-09 – 1 pc

Stack Stream Unit SS-110 – 1 pc
Book press conveyor UC-110 – 1 pc
6m cooling conveyor (straight type) – 1 pc
Manual conveyor HT110 HC-110 (off-line) – 1 pc
Feeding guide HT110 HCG-100 – 1 pc
Three-knife trimmer Horizon HT-110 – 1 pc

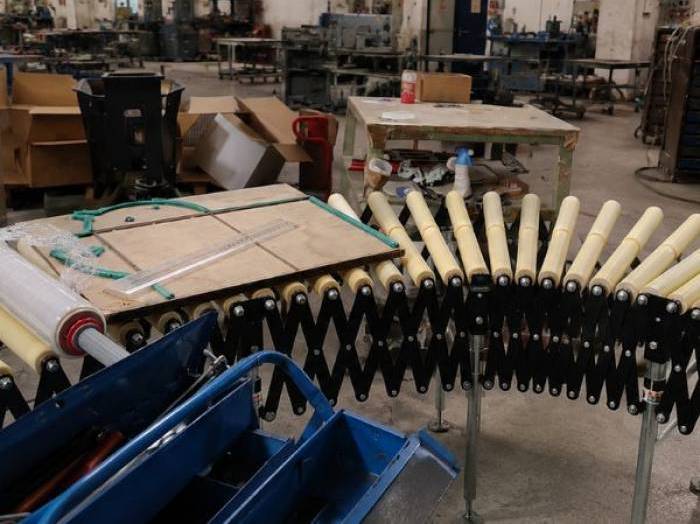

roller conveyor HT (3m extension) CVA-100 – 1 pc
