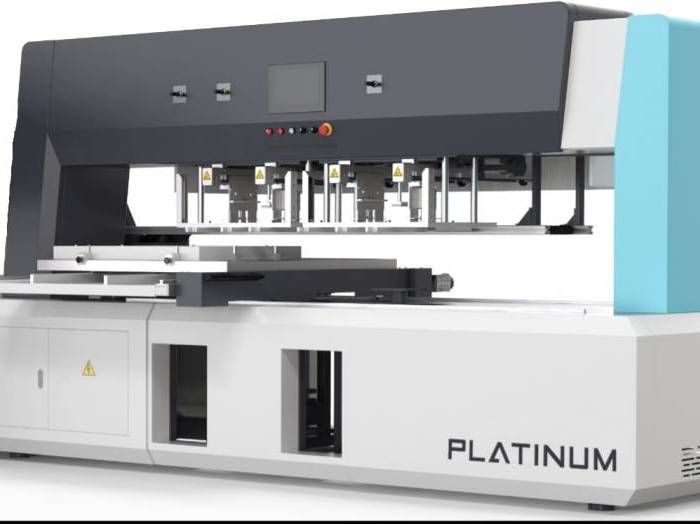

Platinum PB-1020 Off-Line Blanking System ()

Finitura Machine

Stato attuale: In stock

Last updated: 26-08-2026 | Viewed: 85 times - Enquiry's: 1

PD Ref: 143987

Anno:
Max.formato: 45 x 37 inch (114 x 93 cm)

Latest Enquiry for this machine was from Pakistan.

Extras: - Touch-screen Control

Important: 2006 New

Descrizione:

Standard Features:

 Fully Automatic
 Dual-head blanking system for running sheets with nested blanks
 Heavy-Duty, quality-built gantry structure main frame
 Frame style supporting base for precision blanking action ensuring damage free loads
 Equipped with high-precision linear bearing rails and servo motors for smooth and precise frame movement
 Operator friendly touch screen for quick and simple programing
 Automated loading to conveyor to reduce labor and increase blanking speed
 With Stripping Option

Specifications:

Max. Sheet Size : 1020mm x 960mm (40.15 x 37.8 )
Min. Sheet Size : 300mm x 300mm (11.8 x 11.8 )
Max. Blank Size (Auto Mode) : 310mm x 350mm (12.2 x 13.7 )
Max. Blank Size (Manual Mode) 450mm x 350mm (17.7 x 13.7 )
Min. Blank Size : Robot Arm Mode: 50mm x 50mm (1.96 x 1.96 )
Manual Mode:30mm x 30mm (1.18” x 1.18”)
Stripping Option Max/Min : Min: 15mm (0.59”) Max: 100mm (3.93”)
Maximum Working Pressure : 2.5 T
Pressure : 8 Bar
Pile Height : 50mm - 85mm (2 - 3.3 )
Max. Speed : 18 Cycles / Minute
Total Power : 7kw
Electrical Power Requirements : 220V; 3-Phase; 60Hz; 32Amp
Approx. Net Weight : 2240kg (4,938 lbs)

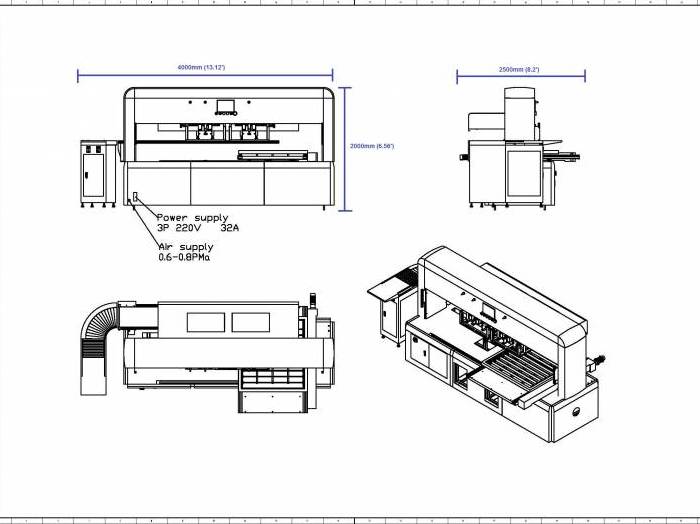

Machine Dimensions (L x W x H) : 4000 x 2500 x 2000mm (13.12’ x 8.2’ x 6.56’)
