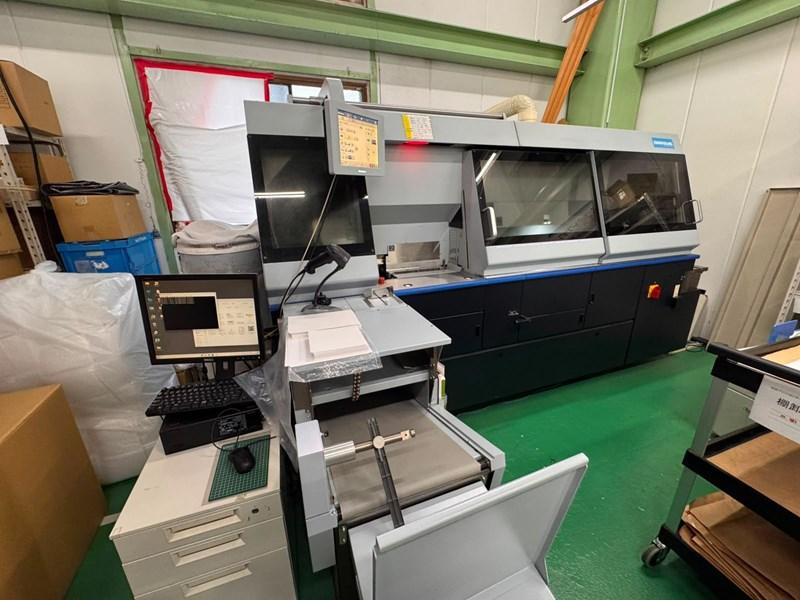

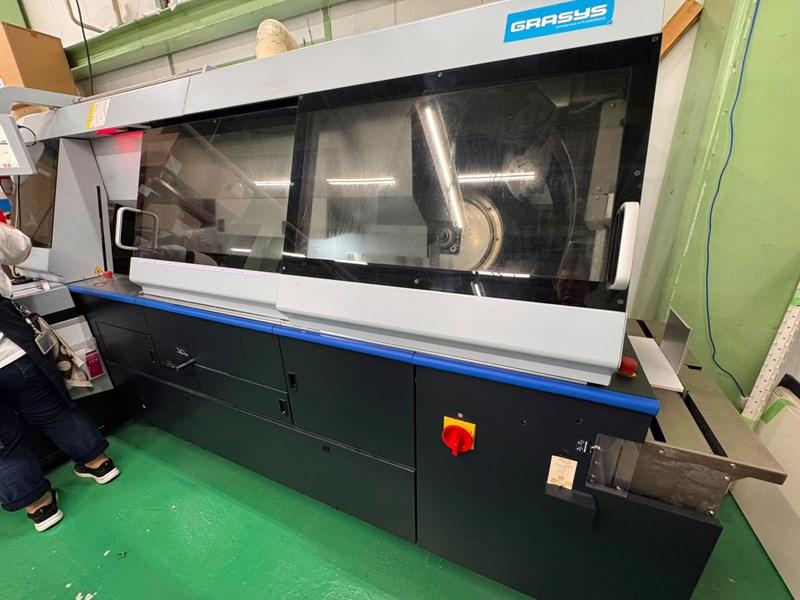

Horizon BQ 480 EVA (2020)

---

Anno: 2020
Max.formato: 32 x 32 cm (12 x 12 inch)

---

Important: Very Good

Descrizione:

<strong>Ref:11144. 2020 Horizon BQ-480 EVA</strong>
Late model perfect binder in excellent condition.
Perfect binder designed for operation by one person with moveable touch-screen control panel for easy set-up.
Customised set-up accounting for paper type, signature or loose sheet, sewn book blocks, notch binding, etc.
<strong>Comprising:</strong>

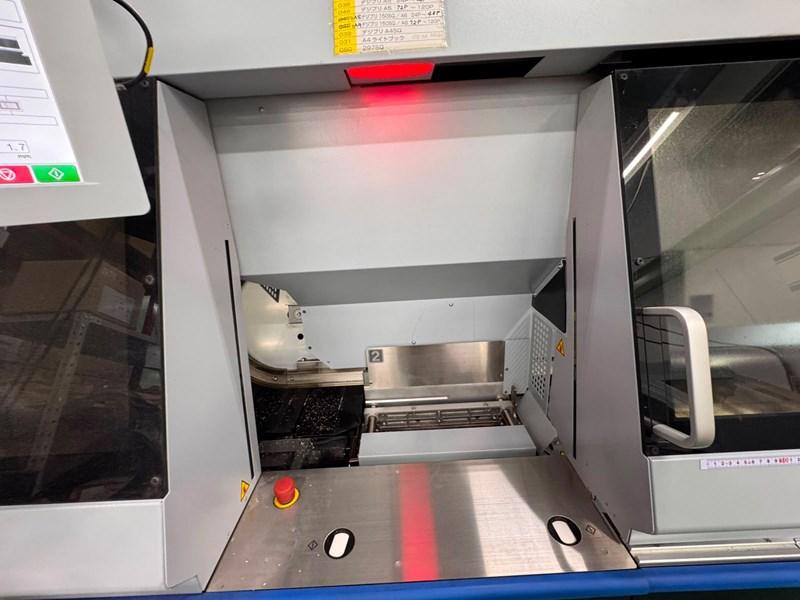

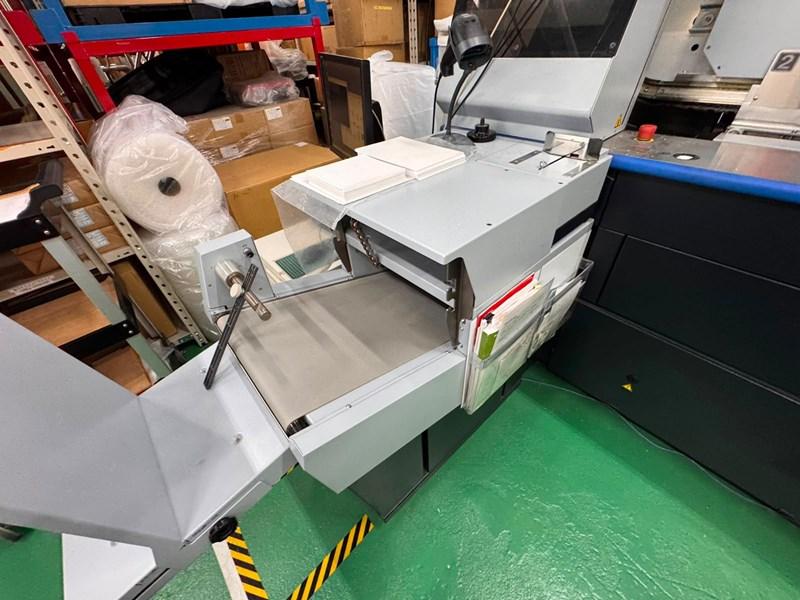

BQ-480 binder with hand feed station and 4 clamps

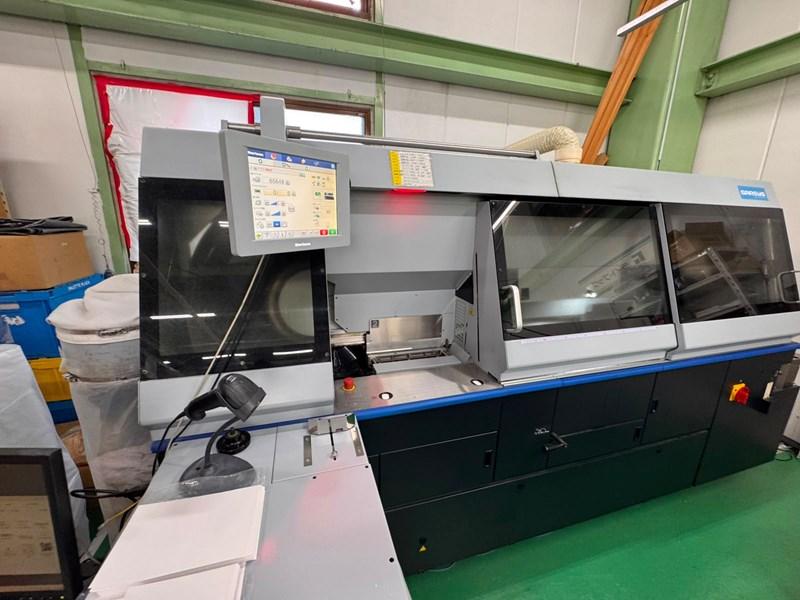

Height adjustable LCD colour touchscreen for full automation of the following areas:
• Main clamp book width
• Milling head
• Spine glue length
• Cover size scoring
• Cover nipping unit
• Book delivery width

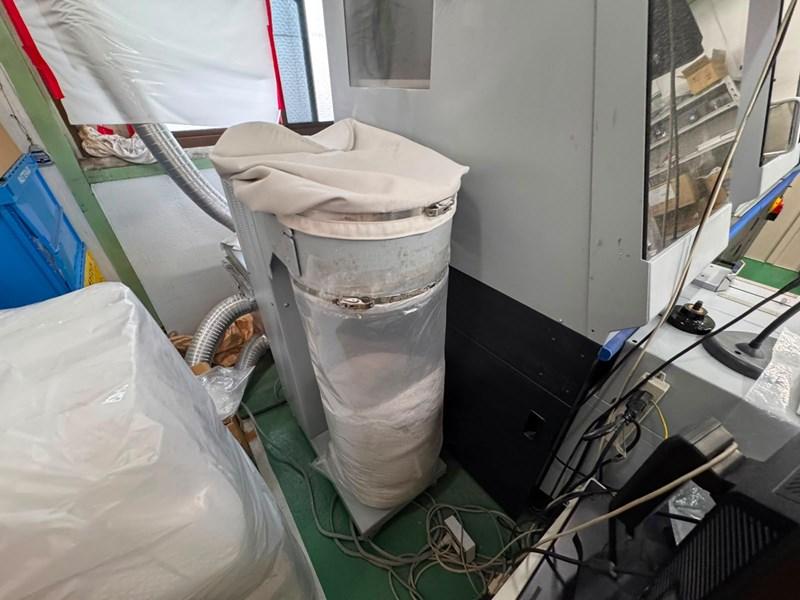

Milling roughing unit with dust bag extraction

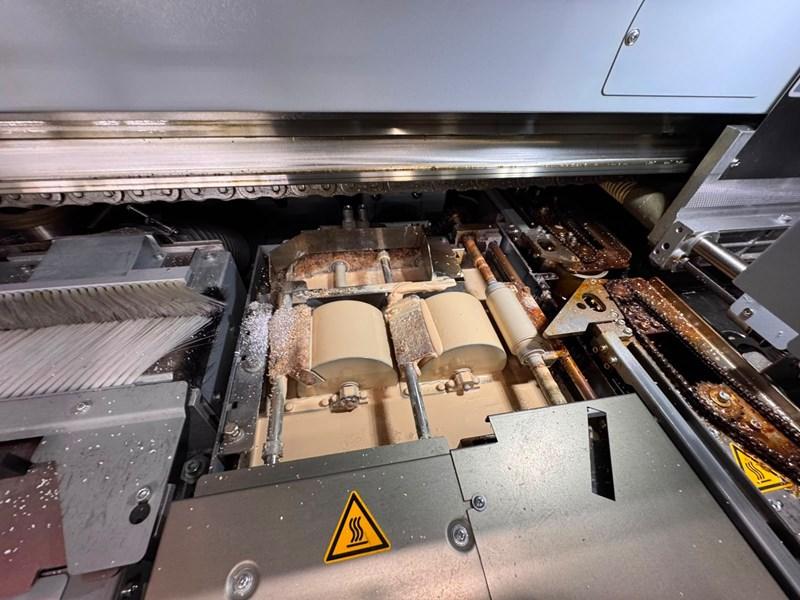

EVA hotmelt roller type spine gluing tank
EVA hotmelt side gluing discs with glue length cut-off
Auto suction cover feeder with scoring and double sheet detection
Improved delivery table for gentle handling of thicker or PUR bound books.
Including accessories, tools manuals.
<strong>Accessories:</strong>
Auto calliper book measuring device, for quicker make-ready.
<strong>Specification:</strong>
Book size, Max: 320 x 320 mm
Min: 145 x 105 mm
Open cover size, Max: 320 x 670 mm
Min: 135 x 225 mm
Book thickness : 1 to 65 mm
Mechanical speed, Max: 1,350 cycles/hr.

---

Localisata: Europe Western

---

---

Disponible: Immediately

---

---

---

---

---
