Xeikon Digital Press CX 500 with GM Finishing (2018)

---

العمر: 2018
Max.Size: 100 x 52 cm (39 x 20 inch)
الألوان: 5

No counter

---

الوصف التقني:

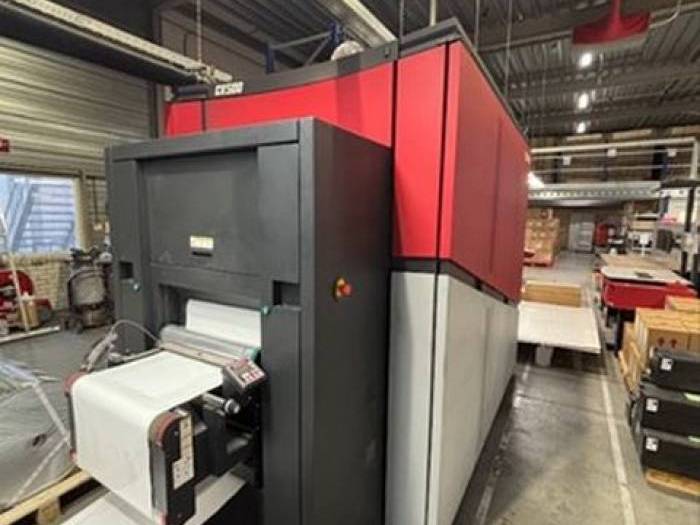

XEIKON CX500 Digital Label Press
- Year of manufacture 2018
- Roll-to-roll configuration met variable repeat length
- LED-array based, Dry Toner Electrophotography
- Xeikon QA-CH Toner (meeting FDA regulation)
- Color Configuration 5/0 simplex (CMYK and White)
- Media Width max 520 mm
- Imaging Width max 508 mm
- Media weight 40 – 350 gsm Media caliper 40 – 550 microns
- Web Speed max 30 m/min
- Productivity max 936 sqm / hour
- In-Line Density Control
- Active Web Alignment
- Resolution 1.200 dpi with variable dot density
- Digital Front End Xeikon X800 with Control PC and 2 monitors
- Xeikon MY PRESS Controller
- Machine is still in Xeikon Service Contract
- Machine is still in production for small runs

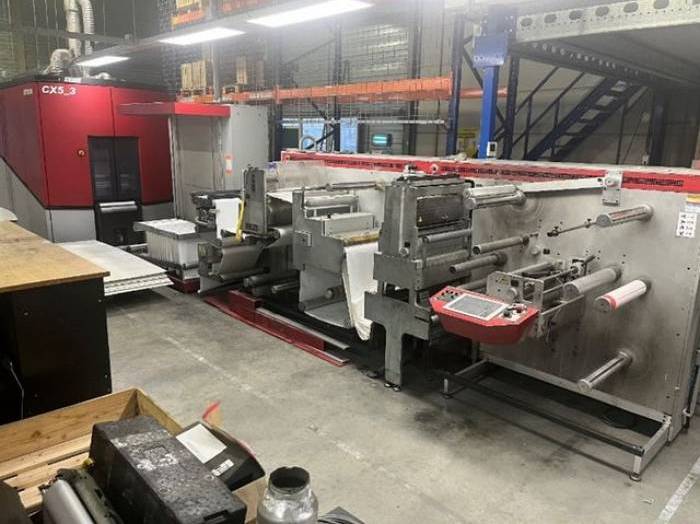

GM DC5V5 Finishing and Converting System
- Year of manufacture 2018
- Web Width 200 - 520 mm
- Substrate Thickness 20 – 200 microns
- Machine Speed - Semi Rotary up to 55 m/min
- Unwind Unit - Diameter max 700 mm
- BST Web Guide with splice table
- Servo controlled Flexo Printing Unit
- UV Drying Unit
- Laminating Unit
- Vetaphone Corona Unit
- Die Cutting Unit - Die plate size 50,8 mm – 520,7 mm
- Magnetic Cylinder Z 200
- Waste Rewind with 500 mm diameter
- Slitting Unit
- 2x Rewinds
- pre-installed Buffer-System for Xeikon Digital Press

---

تقع: Europe Western

---

---

متاح: Immediately

---

---

---

---

---
