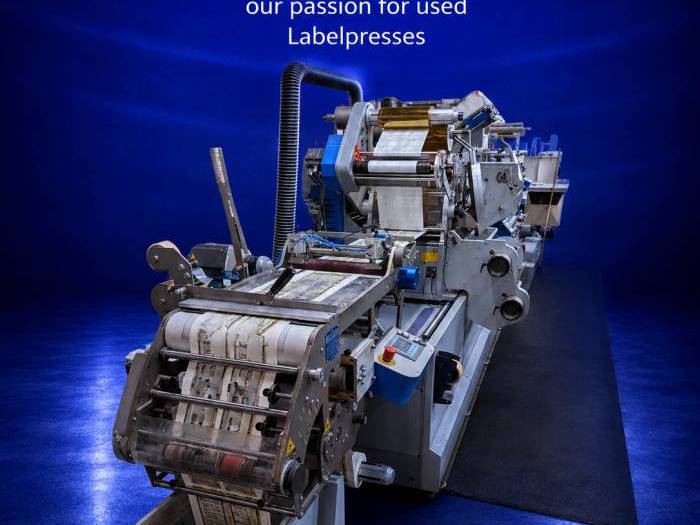

Cartes GT 263 HSD (2014)

---

العمر: 2014
Max.Size: 36 x 0 cm (14 x 0 inch)

---

الوصف التقني:

CARTES
Model: GT 363 HSD
Year: 2014
Machine type: Label finishing / embellishment / converting machine
Maximum material width: 360 mm
Maximum print / working format: 340 x 320 mm
Maximum speed: up to 15,000 cycles/hour
Machine layout dimensions: approx. 8,288 mm length x 1,628 mm width/depth x 2,148 mm height
Status: Machine is still in production until approx. end of the year
Reason for sale: Replacement by a faster machine
________________________________________
Configuration
The machine is equipped with the following units:
• Unwinder
• Corona pretreatment
• Flat hot foil stamping unit
• 2 x transverse flat hot foil units
• 1 x longitudinal foil guide
• Foil unwinding 1”
• Foil rewinding 3”
• Flat screen printing unit
• UV-Ray UV curing unit
• Flat die-cutting unit
• Matrix rewinding, 3” / 76 mm core
• Edge trimming knives
• Backside slitting / backside scoring
• Razor blades for longitudinal slitting
• 2 x rewinding shafts, 3”
________________________________________
Accessories included
• 2nd plate for hot foil stamping
• 2 plates for embossing / relief stamping
________________________________________
Service and condition
The machine is currently still in operation and is reported to be in good working condition.
A technical service was carried out by a Dortschy technician in October 2024.
FGT condition rating: 8/10 ★★★★★★★★☆☆
This rating is based on the year of manufacture, the current production status, the recent service and the overall configuration of the machine.
Final condition remains subject to inspection, technical confirmation and video review.
________________________________________
Main advantages
• Attractive price compared to the original new price of approx. EUR 244,500
• Strong configuration for premium label finishing
• Hot foil stamping and embossing capability
• Flat screen printing unit for special effects and high-value applications
• UV curing system included
• Flat die-cutting unit included
• Matrix removal, slitting and rewinding included
• Still in production
• Recent service in October 2024
• Compact and complete finishing solution for label converters
________________________________________

---

تقع: Europe Western

---

---

متاح: Immediately

---

---

---

---

---
