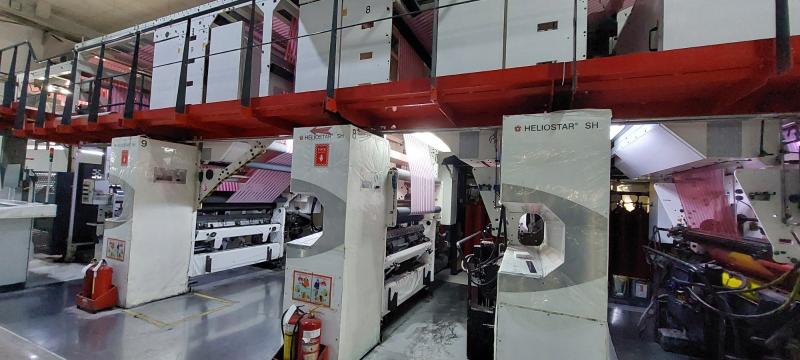

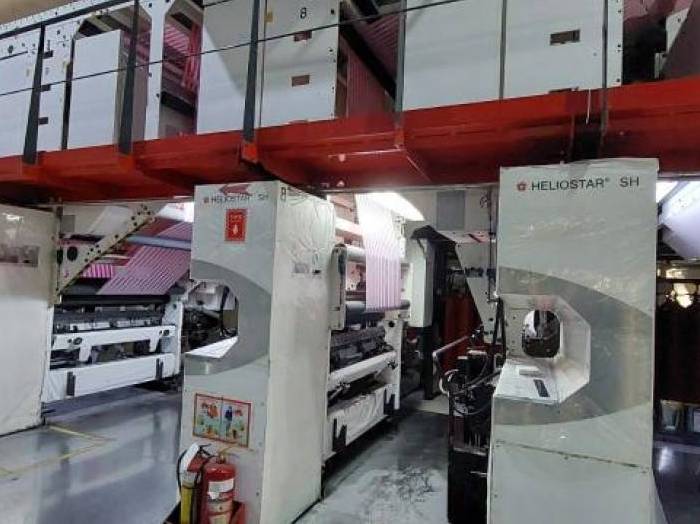

WH Heliostar SH Rotogravure (2011)

رول إلى رول Machine

الدولة الحالي: In production

Last updated: 20-07-2026 | Viewed: 145 times - Enquiry's: 2

PD Ref: 143161

Dealer Ref.# 304550

العمر: 2011
Max.Size: 130 x 0 cm (51 x 0 inch)

Latest Enquiry for this machine was from Morocco.

الوصف التقني:

Manufacturing year 2011

Installed in 2012

45k working hours

9 print stations

Printing width: 1300 mm

Unwind for Printing Machine

NON-STOP FLYING SPLICE TURRET UNWIND

CLIMATE CONTROL of the electric components of the unwind

PATH ROLLER DESIGN FOR UNWIND

ADDITIONAL OPERATOR TERMINAL

CONNECTING PARTS between unwind and print station

SAFETY EQUIPMENT FOR UNWIND

AIR SHAFTS FOR SHAFTED WINDER for 76 mm core ID

1x IDLER ROLLERS

1x WEB LEAD AND ACCESS ELEMENTS between the unwind and the first print station

1 x INFEED DRAW

1 x WEB EDGE GUIDE prior to printing

2x GRAVURE PRINT STATIONS for double hood dryers

7 x GRAVURE PRINT STATIONS for single hood dryers

9x ACCESSORIES TO ENABLE THE USE OF 2 EXISTING PLATE

CYLINDER SLEEVES of 1050/1350 mm

9 x INK PAN HEIGHT ADJUSTMENTS

9 x INKING SYSTEMS for a combined inking roller/immersion process

9 x SLIDE-IN CARTS FOR THE INKING SYSTEMS

9 x DOCTOR BLADE UNITS

9 x DOCTOR BLADE HOLDERS

1 x START-UP PACKAGE

9 x PRINT STATION DIRECT DRIVES

9 x IMPRESSION ROLLER SYSTEMS FOR USE WITH SLEEVES

9x IMPRESSION ROLLER SLEEVES

9x ANTISTATIC BARS

9x ATTACHMENT PARTS FOR ANTISTATIC BARS

1 x COMPRESSED-AIR BOOSTER

9 x INFEED ROLLER ADJUSTMENTS

2 x CATWALK SEGMENTS for print stations with double hood dryers

7 x CATWALK SEGMENTS for print stations with single hood dryers

2 x HOT AIR DRYERS with double-hoodsystem with 10 nozzles per drying hood

2 x HOT AIR GENERATORS for double-hood dryers with 10 nozzles per hood

7 x HOT AIR DRYERS with single-hood system with 10 nozzles per drying hood

7 x HOT AIR GENE RATORS for single-hood dryers with 10 nozzles

2 x CHILL ROLLSfor double-hood dryers

7x CHILL ROLLS for single-hood dryers

1 x WEB THREADING SYSTEM for the drying hoods, infeed and outfeed section

1 x CENTRAL EXHAUST FAN

1 x SOLVENT LEVEL ANALYZING SYSTEM

1 x TESTING UNIT for solvent level analyzers

2 x PLATFORMS WITH BASE FRAMEWORK to accept air heaters, designed for double hood dryer s

7 x PLATFORMS WITH BASE FRAMEWORK to accept air heaters, designed for single hood dryer s

1x PLATFORM WITH BASE FRAMEWORK FOR EXHAUST AIR FANS to accept 1 exhaust air fan

2x EXHAUST AIR PIPING for double-hood dryers

7x EXHAUST AIR PIPING for single-hood dryers

2 x TEMPERATURE CONTROL ELEMENTS FOR THE HOT AIR

GENERATORS for double-hood dryers with 10 nozzles

7 x TEMPERATURE CONTROL ELEMENTS FOR THE HOT AIR

GENERATORS for single-hood dryers with 10 nozzles

9x FLOOR SWEEP SYSTEMS

9x PREPARATION OF THE PRINT STATIONS FOR INSTALLATION OF A CO2 FIRE EXTINGUISHING SYSTEM

1 x VISCOSITY CONTROLLER

1 x SOLVENT SUPPLY

9x ATTACHMENT PARTS FOR VISCOSITY CONTROLLER

1 x TURNING BAR ASSEMBLY

1 x LONGITUDINAL AND SIDELAY REGISTER CONTROL

8x ATTACHMENT PARTS AND INTEGRATION OF REGISTER CONTROLLER

2x ATTACHMENT PARTS AND INTEGRATION OF REGISTER CONTROLLER

9 x PRE REGISTER ADJUSTMENTS

EASY SYNC

1 x WEB INSPECTION SYSTEM WITH WEB-VIDEO CAMERA

1x ATTACHMENT PARTS FOR WEB INSPECTION CAMERA

1 x WEB UNDERPASS with idler rollers, capable of being walked on

1x WEB LEAD AND ACCESS ELEMENTS

1 x OUTFEED DRAW

1 x ELECTRICAL EQUIPMENT

incorporated in a floor mounted ELTAINER

9x COOLING for the print unit control cabinets

1 x PROCONTROL OPERATOR TERMINAL

1 x MODULE JOB PROCESSING

1 x MODULE LOG PRINTOUT

1 x MODULE TELESERVICE

2x COMPRESSED AIR PIPING FOR 2000 kPa

7x COMPRESSED AIR PIPING FOR 2000 kPa

1x DOCTOR BLADE HOLDER SEALINGS

Rewind for Printing Machine

1x WEB GUIDE PRIOR TO REWINDING

1x SLITTER ASSEMBLY for max. 4 ups

1 x RAZOR BLADE SLITTING ASSEMBLY with 3 blades

2x ADDITIONAL RAZOR BLADE HOLDERS

1 x ADDITIONAL PARTS FOR THE SLITTER

1 x EDGE TRIM REMOVAL SYSTEM

1x CONNECTING PARTS between rewind and rear frame

1 x NON-STOP FLYING SPLICE TURRET REWIND

1x CLIMATE CONTROL of the electric components of the rewind

1 x PATH ROLLER DESIGN FOR REWIND

1x ADDITIONAL OPERATOR TERMINAL

1 x SAFETY EQUIPMENT FOR REWIND

2 x AIR SHAFTS FOR SHAFTED WINDER for 76 mm core ID

Web width: 1320 mm

Gravure cylinder face width: 1380 mm

Minimum print repeat length: 400 mm

Maximum print repeat length: 920 mm

Gravure cylinder bearings W H-Standard

Roll diameter: 800 mm

Maximum roll weight: 850 kg

Maximum mechanical speed: 370 m/minute

INKS

NC, PVB, PVC, 1- and 2-component with separate ink carrying elements

COMPRESSED AIR REQUIREMENTS

Pressure positive : 600 kPa

Volume flow rate for the machine:10 m³/h

Volume flow rate for each impression roller sleeve: 120 m³/h

10-Nozzle dryer:

Supply air flow rate: 5.100 m³/h

Effective dryer length: 2.0 m

Nozzle exit air velocity: 30 – 46 m/s

Maximum nozzle exit air temperature: 120 °C at 20°C fresh air temperature

Recirculating air: 50%

Heating capacity: 64 kW

2x10-Nozzle dryer:

Supply air flow rate: 10.300 m³/h

Effective dryer length: 2 x 2.0 m

Nozzle exit air velocity: 30 – 46 m/s

Maximum nozzle exit air temperature:120 °C at 20°C fresh air temperature

Recirculating air

− with solvent based inks 50% in zone 1 and 86% in zone 2

− with water-based inks 50% in zone 1 and 70% in zone 2

Heating capacity

− with solvent-based inks: 86 kW

− with water-based inks:108 kW

Requirements when using thermal oil as the drying air heating medium:

− Supply temperature: 210 °C

− Return temperature: 180 °C
