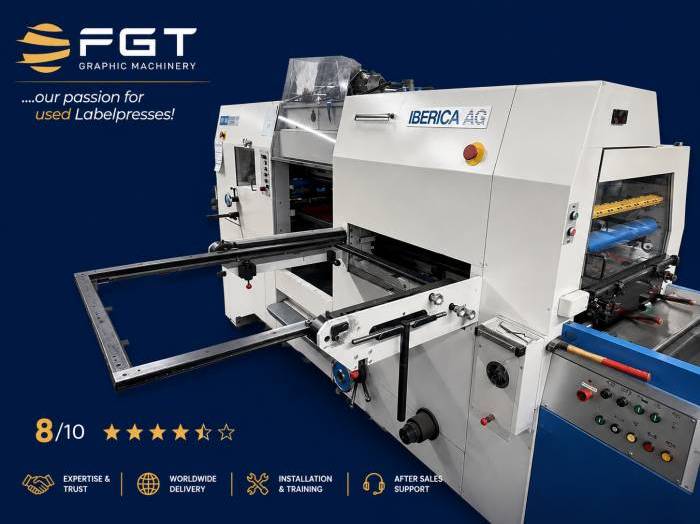

Iberica Varioplan JR-105 (1997)

قص بالقالب Machine

الدولة الحالي: In production

Last updated: 11-08-2026 | Viewed: 83 times - Enquiry's: 1

PD Ref: 143639

Dealer Ref.# FGT 27-178

العمر: 1997
Max.Size: 105 x 75 cm (41 x 29 inch)

Latest Enquiry for this machine was from Ukraine.

الوصف التقني:

Iberica
Model: Varioplan JR-105
Machine No.: 97118
Year of manufacture: 1997
Machine type: Automatic flatbed die-cutting machine
Maximum format: 750 x 1,050 mm
Minimum format: 350 x 400 mm
Maximum speed: 9,000 sheets/hour
________________________________________
MATERIAL CAPACITY
Maximum cardboard thickness: 1.8 mm
Maximum corrugated board thickness: 3.0 mm
The machine is therefore suitable for processing a broad range of substrates from conventional paper and carton through to heavier packaging and corrugated materials.
________________________________________
TECHNICAL CONFIGURATION
VARIOPLAN SYSTEM
• Original Iberica Varioplan System
• Designed for precise and efficient die-cutting
• Proven mechanical concept for demanding industrial production
• Suitable for a broad range of packaging and commercial converting applications
________________________________________
FEEDER SECTION
MABEG NON-STOP FEEDER WITH PRE-LOADER
The machine is equipped with a Mabeg Non-Stop Feeder including Pre-Loader.
Advantages include:
• Continuous production capability
• Reduced machine interruptions during pile changes
• Improved productivity
• Efficient preparation of the next pile while production continues
• Reliable sheet feeding even at higher production speeds
The Non-Stop configuration is particularly valuable in longer production runs where unnecessary machine stoppages directly affect productivity.
________________________________________
SHEET ALIGNMENT
• Sidelays on operator side
• Sidelays on off-side
• Accurate sheet positioning prior to die-cutting
• Increased flexibility for different sheet and substrate requirements
Precise sheet alignment is essential for maintaining accurate registration during die-cutting, creasing and stripping operations.
________________________________________
DIE-CUTTING SECTION
• Automatic flatbed die-cutting system
• Maximum sheet format: 750 x 1,050 mm
• Minimum sheet format: 350 x 400 mm
• Suitable for paper, cardboard and corrugated substrates
• Production speed up to 9,000 sheets/hour
• Robust mechanical design for industrial production
The combination of format flexibility and material capacity makes the machine suitable for a wide range of packaging applications.
________________________________________
STRIPPING DEVICE
The machine is equipped with an integrated stripping section.
The stripping system allows waste material to be removed directly during the die-cutting process.
This provides significant production advantages:
• Reduction of manual stripping operations
• Faster downstream processing
• Reduced labour requirements
• Higher production efficiency
• Cleaner finished products
• Improved workflow after die-cutting
Especially in folding-carton and packaging production, integrated stripping represents an important productivity advantage.
________________________________________
NON-STOP DELIVERY
• Automatic Non-Stop Delivery
• Continuous production during pile changes
• Reduced downtime
• Improved overall machine productivity
• Suitable for continuous industrial production
