Summa S2 T160 (Unkn.)

رقمي آخر Machine

الدولة الحالي: In stock

Last updated: 16-10-2026 | Viewed: 13 times - Enquiry's: 0

PD Ref: 145134

العمر: Unkn.
Max.Size: 160 x 10 cm (62 x 3 inch)

الوصف التقني:

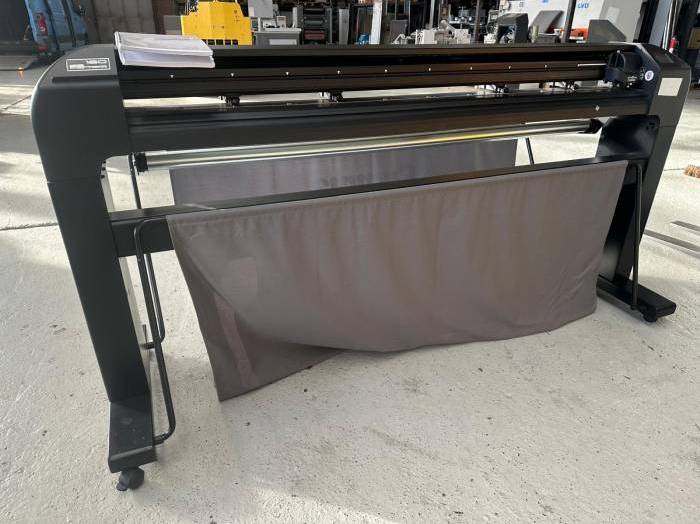

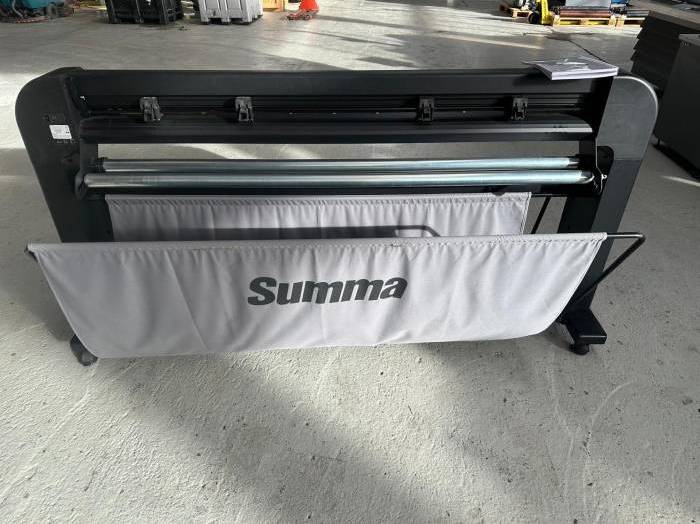

Summa S2 T160 Tangential Vinyl Cutter – 64” Wide Format Cutter for High-Precision Workflow

The Summa S2 T160 is a robust 64-inch tangential vinyl cutter engineered for accuracy, speed, and reliability in demanding production environments. Built on Summa’s legendary cutting platform, the S2 T160 delivers exceptional performance across a wide range of materials including vinyl, reflective film, sandblast mask, and more.

Overview

The S2 T160 combines Summa’s proprietary tangential cutting head with OPOS alignment technology to deliver unmatched precision. Designed for large-format applications, the system ensures perfect cuts, sharp corners, and optimal tracking—even on long jobs. Ideal for high-output sign shops, vehicle wrap professionals, and industrial applications where consistency is non-negotiable.

---------------------------------------------------------------

Key Features

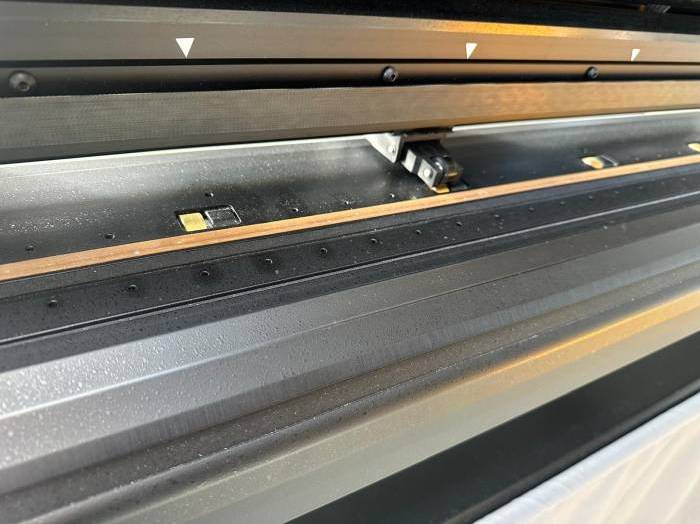

- Tangential Cutting Head
- Mechanically controlled blade rotation provides exact cutting angles and cornering for complex designs and thick materials.
- OPOS X Optical Positioning System
- Automatically reads registration marks for accurate contour cutting of printed graphics.
- 64-inch Media Width
- Supports media rolls up to 164 cm (64.6 in) wide with high precision.
- Unmatched Tracking Accuracy
- Industry-leading tracking performance up to 8 meters ensures long-run reliability.
- Barcode Automation
- Built-in barcode functionality enables automatic job recognition and processing in sequence.
- Heavy-Duty Roll Support System
- Keeps media aligned and tensioned properly throughout long runs, reducing errors and material waste.
- User-Friendly Touch Interface
- Intuitive control panel for real-time adjustments, job setup, and diagnostics.
- Connectivity Options
- Includes both Ethernet and USB ports for flexible integration into any workflow.
- Automatic Cut-off Knife
- Integrated horizontal cutter slices media cleanly at job completion.
---------------------------------------------------------------

Technical Specifications

- Model: Summa S2 T160
- Cutting Technology: Tangential
- Maximum Media Width: 164 cm (64.6 in)
- Maximum Cutting Width: Approx. 158 cm (62.2 in)
- Cutting Force: Up to 600 grams
- Speed: Up to 1131 mm/sec (diagonal)
- Tracking Accuracy: Up to 8 meters
- Repeatability: Within 0.1 mm
- Connectivity: USB, Ethernet
- Dimensions (approx.): 201 × 70 × 111 cm (79 × 27.5 × 43.7 in)
- Weight: Approx. 60 kg (132 lbs)
