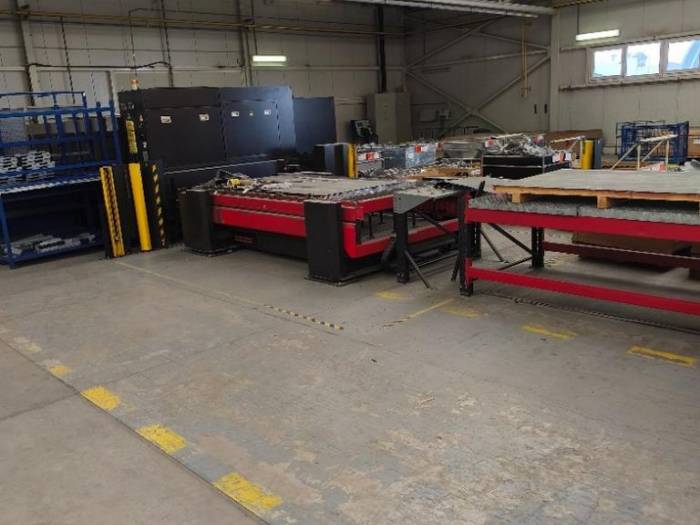

Amada LCG 3015 AJ Laser (2016)

متفرقات Machine

الدولة الحالي: In production

Last updated: 16-10-2026 | Viewed: 3 times - Enquiry's: 0

PD Ref: 145145

Dealer Ref.# 26552

العمر: 2016
Max.Size: 300 x 150 cm (118 x 59 inch)

Important: functional- condition and wear and tear according to its age- well maintained

الوصف التقني:

Maximum continuous laser power 2,000 W
X-axis travel 3,070 mm
Y-axis travel 1,500 mm
Z-axis travel 100 mm

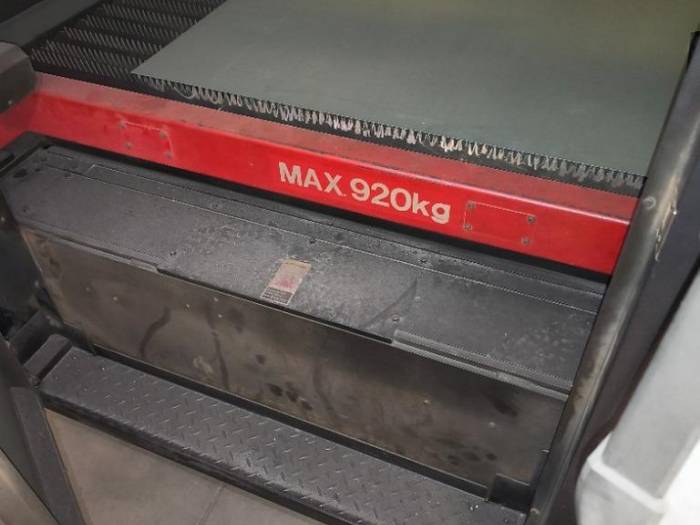

Maximum table load 920 kg
Max. thickness – mild steel ST 1203 16 mm
Max. thickness – stainless steel 10 mm
Max. thickness – aluminum AlMg3 8 mm
Max. thickness – copper 4 mm
Max. thickness – brass 5 mm
Cutting speed 0–120 m/min
X-axis traverse speed 120 m/min
Y-axis traverse speed 120 m/min
Combined X/Y traverse speed 170 m/min
Z-axis traverse speed 80 m/min
Positioning accuracy ±0.01 mm / 500 mm
Repeat positioning accuracy ±0.005 mm
AMNC-F CNC control
CNC system featuring a cutting parameter library, automatic diagnostics, closed-loop laser power control, USB and Ethernet/LAN interfaces, program search, production time measurement and single-/multiple-part production modes. Programs can be edited at the machine; external programming of complex parts requires optional software.
Type AMADA AMNC-F
Display 15″ touchscreen
Simultaneously controlled axes 3 X/Y/Z
Program format ISO/EIA
Input resolution 0.001 mm
Memory capacity 1 MB

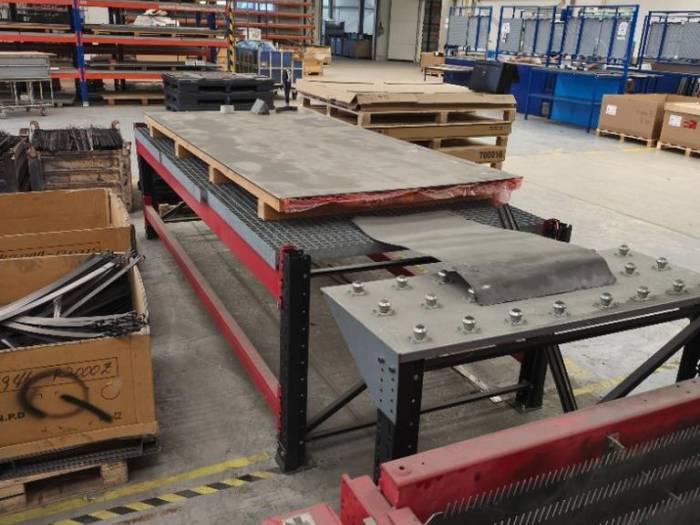

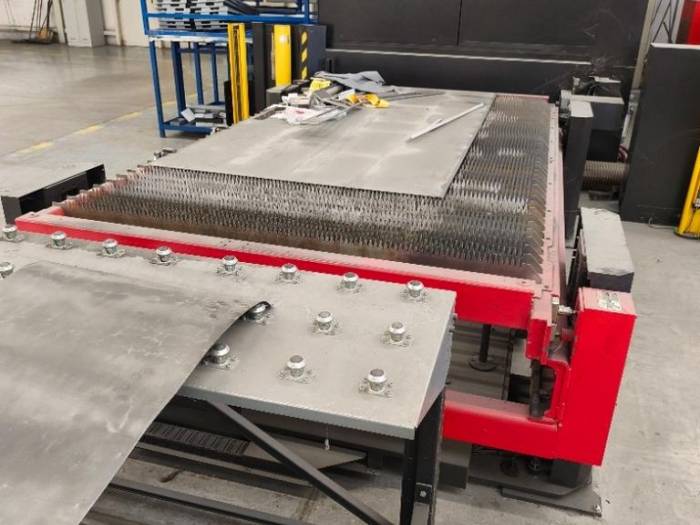

Automatic pallet changer — Standard pallet system allows the next sheet to be prepared while cutting, reducing downtime. The supplied configuration includes pneumatic clamping for thin sheets and a roller support for positioning.
HS cutting head — Lightweight cutting head with capacitive height sensing to maintain a constant stand-off distance; quick nozzle and lens replacement.
Programmable Z axis — 100 mm travel, allowing limited processing of formed parts and profiles.
Positioning diode laser — Helps position the cutting head and process raised sheets or offcuts.
NC automatic focusing — Motor-driven focus adjustment for different materials and thicknesses.
OVS4 / OPCIA optical measurement system — Camera-based sheet position detection, cutout recognition and accurate edge-based position measurement stated accuracy ±0.05 mm .
High-pressure cutting — CLEAN CUT technology for clean, oxide-free edges and ALU CAT for aluminum cutting.
OilShot — Program-controlled application of liquid to the sheet surface to reduce adhesion of contamination.
POWER PIERCING — Reduces piercing time and improves operating efficiency.
Fine Edge power control — Adapts laser power to feed rate and part geometry, particularly at edges and corners.
Cutting lenses — Automatic lens monitoring; supplied set stated as three lenses with holders: 1 × 150 mm and 2 × 190 mm.

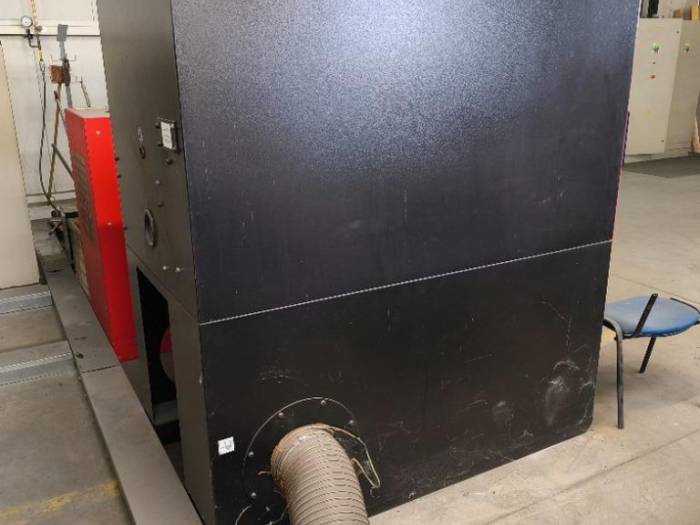

Fume extraction — Vacuum extraction of cutting fumes and particles with self-cleaning filters.

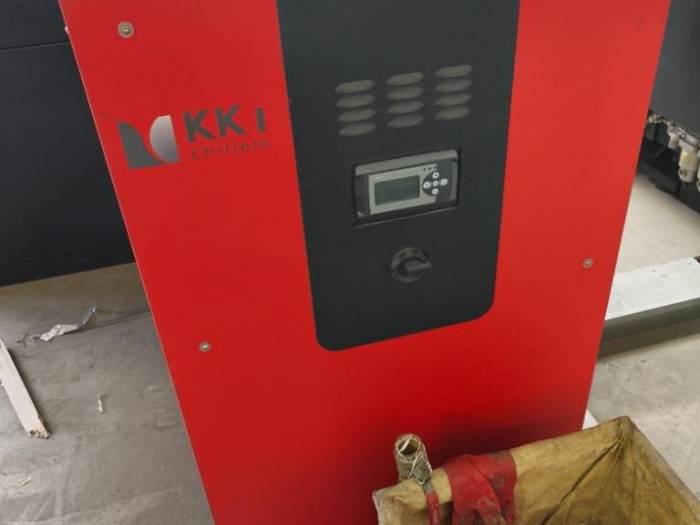

Chiller — Closed-loop cooling of the laser, focusing mirror, lens and drives. Maximum continuous laser power 2,000 W
