POLAR MOHR TR 130EL-4 - Automatic unloading and sta (1999)

Podnoszenie Machine

Aktualny stan: In stock

Ostatnia aktualizacja: 24-08-2026 | Viewed: 99 times - Enquiry's: 0

PD Ref: 141364

Dealer Ref.# 4015

Wiek: 1999
Max.Size: 112 x 78 cm (44 x 30 inch)

Opis techniczny:

Year: 1999
Condition: functional

Technical specification:

Maximum sheet format: 1120 × 780 mm
Minimum sheet format: 400 × 400 mm
Layer height: 40 to 165 mm
Maximum stack height: 1300 mm
Load capacity: 200 kg
Operating air pressure: 6–8 bar
Electrical power consumption: 1.2 kVA

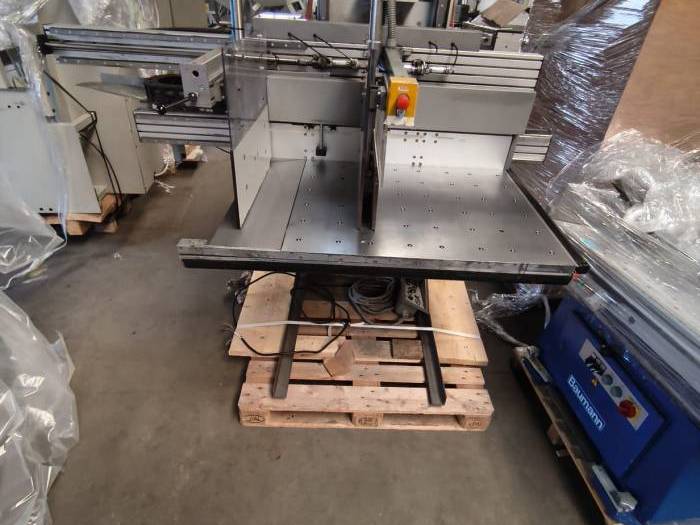

POLAR Mohr Transomat TR 130 EL-4

The POLAR Mohr Transomat TR 130 EL-4 is an automatic unloading and stacking device designed for operation with high-speed paper cutting machines manufactured by POLAR Mohr. The unit automatically removes cut paper layers from the unloading table of the cutter and places them onto a pallet. This reduces manual handling, shortens auxiliary operating time, and improves the continuity and productivity of the cutting process.

Operating principle

After completion of the cutting cycle, the cut layer is transferred into the working area of the unit. The handling mechanism grips the layer, transports it, and places it accurately onto the pallet. The system includes a movable pallet tip which helps maintain precise alignment of the stack.
