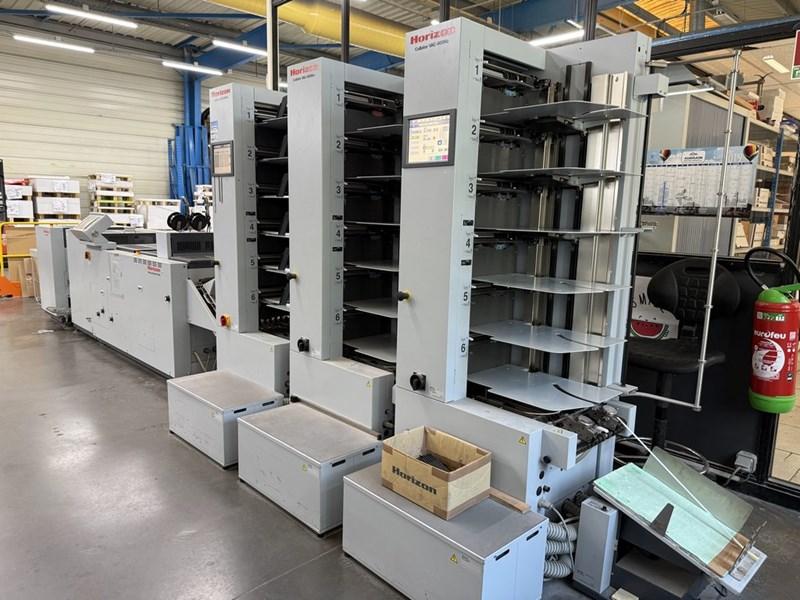

Horizon SPF 200 L (2016)

Produkcja broszur Machine

Aktualny stan: In production

Ostatnia aktualizacja: 09-09-2026 | Viewed: 66 times - Enquiry's: 0

PD Ref: 144321

Dealer Ref.# 12104

Wiek: 2016
Max.Size: 50 x 35 cm (19 x 13 inch)

Opis techniczny:

Latest model, high speed, fully automated booklet maker with A4 landscape format capability
With additional trimmer for 3 sided cutting!
Features:
Advanced Automation – All necessary settings for a wide variety of booklet formats can be performed automatically.
Even the fold roller gap adjustment is automated so very quick changeover with minimal test sheets.
10.4’’ large colour touchscreen with icon-based display for easy operation
Cost Savings –works with pre-cut 4-page sheets instead of folded signatures to eliminate the folding process.
Equipped with:
3 x Horizon VAC-600Ha m c towers 18 Bins
PJ-77R Jogger delivery for rear collation off C tower
IFU-200 connecting unit
SPF 200L Stitcher and folder
2 x 43/6-S Hohner Stitching heads
FC 200L Foredge trimmer
TBC-200L Top and bottom trimmer
Waste paper removing conveyor
PK-30 kicker
LC-200 delivery
Specification:
Sheet Size:
Max. 356 x 610 mm or 14.000” x 24.000”
Min. 120 x 180 mm or 4.725” x 7.090”
Sheet Weight Range:
Normal Paper: 64 to 157 gsm
Art Coated Paper: 84.9 to 157 gsm
Stitch Thickness:
Top/Side Stitch, Corner Stitch and Fold
Max. 4 mmor 0.155” About 48 sheets of normal paper 64 gsm
Production Speed:
Max. 4,000 booklets per hour A4-Finish, Portrait
Max. 3,500 booklets per hour A4-Finish, Landscape
