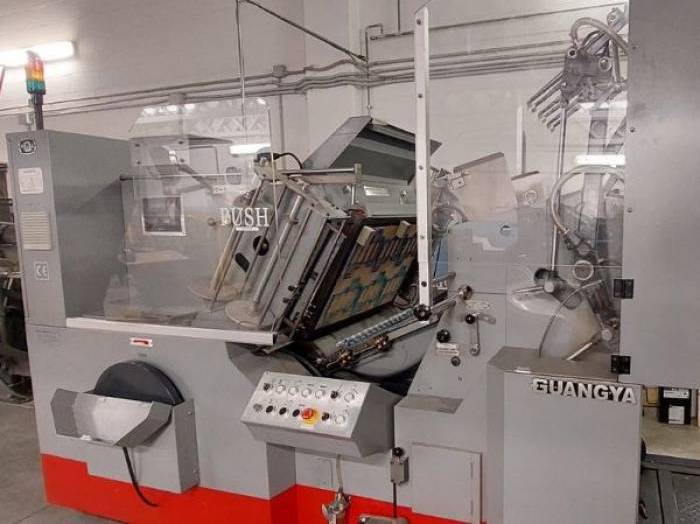

Guangya TL 780 (2019)

Sztancowanie Machine

Aktualny stan: In production

Ostatnia aktualizacja: 18-09-2026 | Viewed: 65 times - Enquiry's: 0

PD Ref: 144502

Wiek: 2019
Max.Size: 78 x 56 cm (30 x 22 inch)

Opis techniczny:

Fustellatrice con Impianto stampa a caldo
Modello TL780
Anno 10/2019
Max formato 780x560mm
Min formato 280x220mm
Max altezza del mettifoglio 800mm
Max altezza della pila in uscita 160mm
Massima Pressione 110T
Potenza 12KW
Spessore carta 100-2000 g/m2
Velocità : 1500 f/h carta < 150g/m2
Velocità : 2500 f/h carta > 150g/m2
Rumore <81db
2 Piastre Trasversali
Potenza della piastra 8Kw
Misure macchina 3700 x 1910 x 2200mm

Automatic Die-Cutting and Hot Foil Stamping Machine
Model: TL780
Year of Manufacture: 10/2019
Max. Sheet Size: 780 × 560 mm
Min. Sheet Size: 280 × 220 mm
Max. Feeder Pile Height: 800 mm
Max. Delivery Pile Height: 160 mm
Max. Pressure / Cutting Force: 110 Tons
Total Connected Load / Power: 12 kW
Paper / Board Stock Range: 100 – 2000 gsm (g/m²)
Max. Speed:
1,500 sheets/hour (paper < 150 gsm)
2,500 sheets/hour (paper/board > 150 gsm)
Noise Level: < 81 dB
Hot Foil Heating Zones / Plates: 2 Transverse Heating Plates
Heating Power: 8 kW
Machine Dimensions (L × W × H): 3700 × 1910 × 2200 mm
