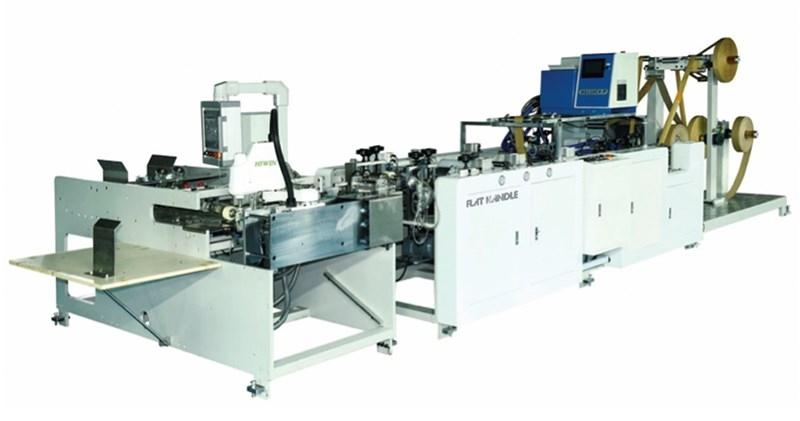

Gutenberg Flat Handle Machine (2023)

Sacos de papel Machine

Estado atual: In production

Ultima actualizacio: 15-09-2023 | Viewed: 353 times - Enquiry's: 0

PD Ref: 112615

Dealer Ref.# 241613

Idade: 2023

Important:

Descricio:

This machine is especially suitable for being applied in shopping bags.

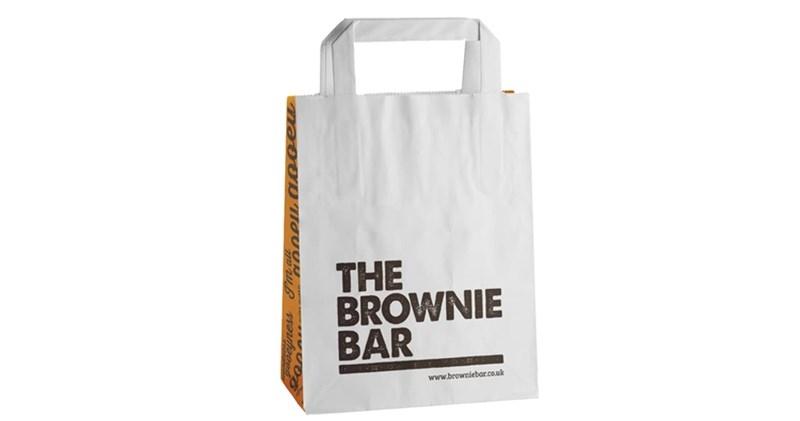

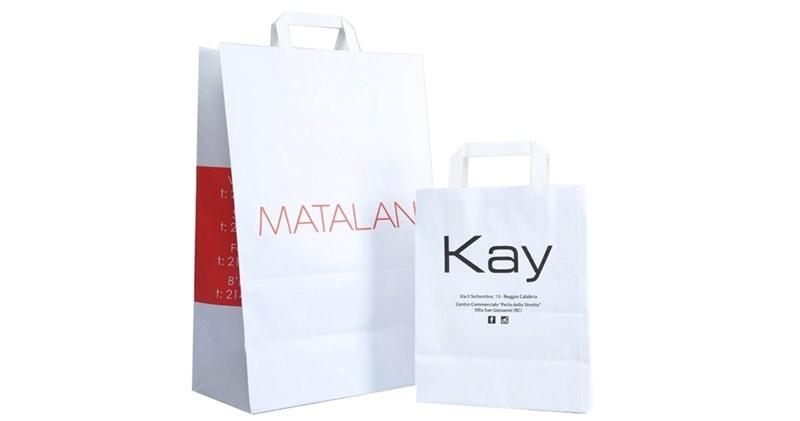

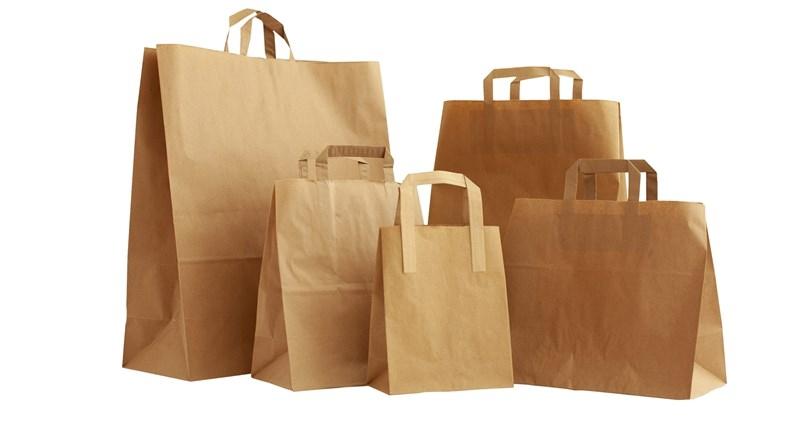

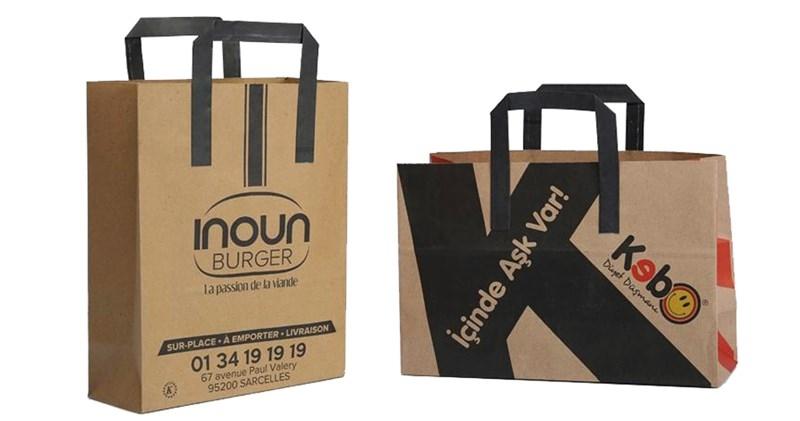

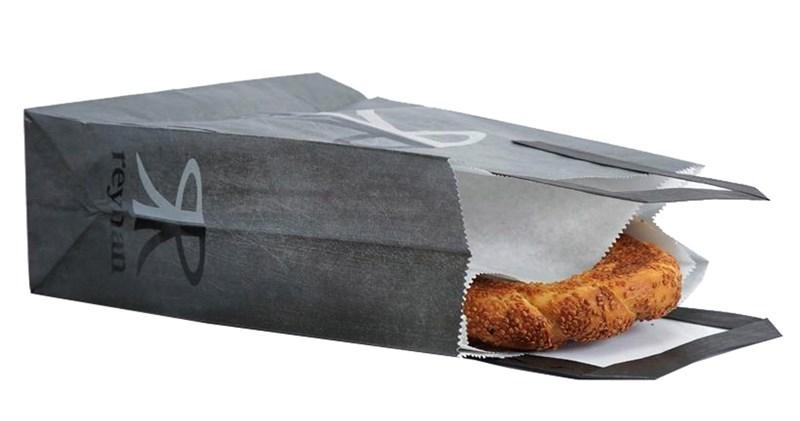

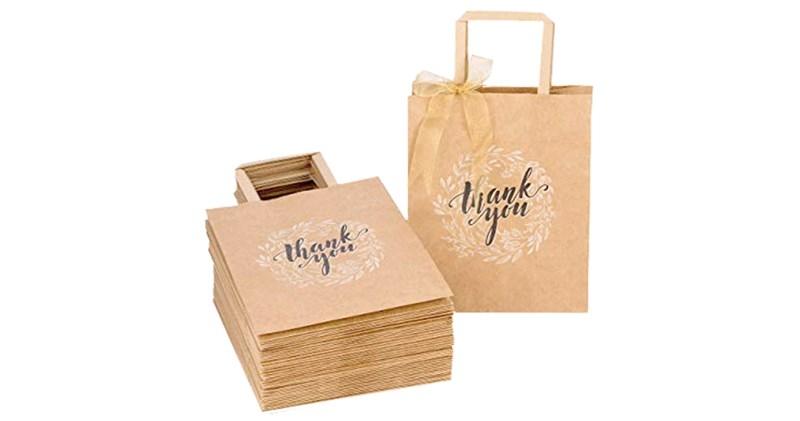

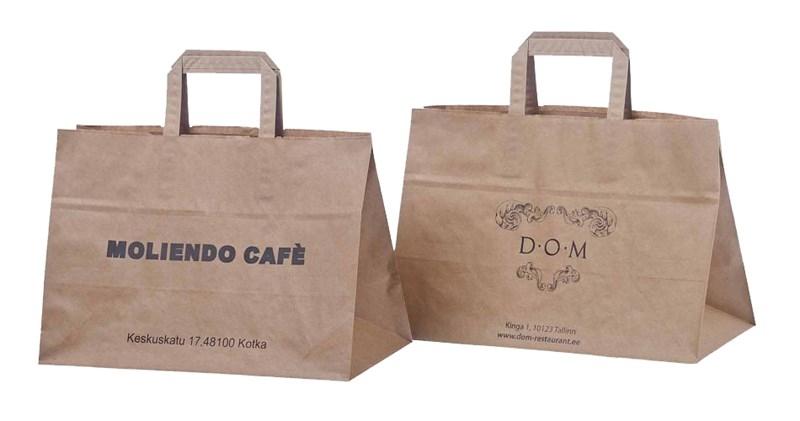

A Paper bag handle making machine is applied to produce many types of paper bags with flat handles, such as food paper bags, shopping bags and so on.

Technical Data
• Handle Width T : 12/15 mm
• Handle Height H : 100 mm
• Handle Distance D : 108 mm
• Paper Sheet Width W : 40 mm
• Paper Sheet Length L : 152/190 mm
• Paper Sheet Weight : 80-140 g/m2
• Paper Bag Width : 250-450 mm
• Paper Bag Height : 250-450 mm
• Bag Blank Mouth Width : 130 mm
• Machine Speed : 33-43 pcs/min
• Gluing System : Hot Gluing System
• Machine Supply : 380V, 50Hz, 3 phase, 4 wires
• Power : 12.2 KW
• Dimension : L 7000 x W 2450 x H 1700 mm

Working Condition
• Power : 3 Phases, 380V ±10%, 50 Hz
• Compressed Air : Pressure: 0.6 MPa Oil and Humidity: 8 mg/m3
• Installation Height: Max. altitude: 1500 mm
• Ambient Requirement: Relative Moisture: Max. 65% when 40 °C Temperature Range: 10~40 °C
