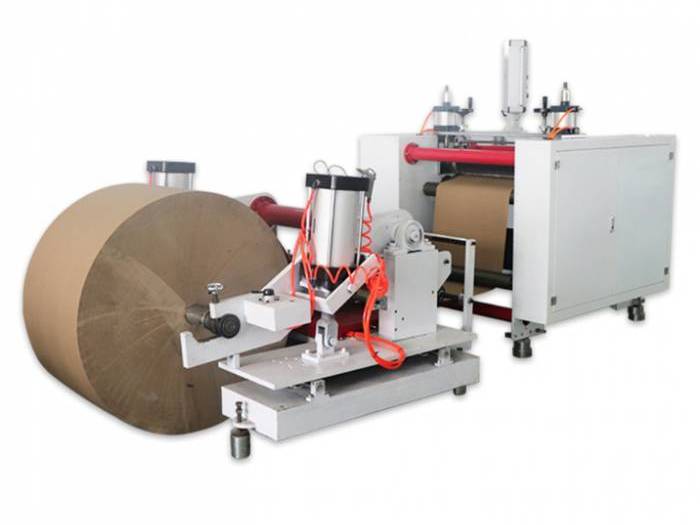

720 Model Honeycomb Paper Making Machine ()

Cardboard Machine

Estado atual: In production

Ultima actualizacio: 21-04-2025 | Viewed: 441 times - Enquiry's: 1

PD Ref: 129882

Idade:
Tamanho: 80 x 70 cm (31 x 27 inch)

Descricio:

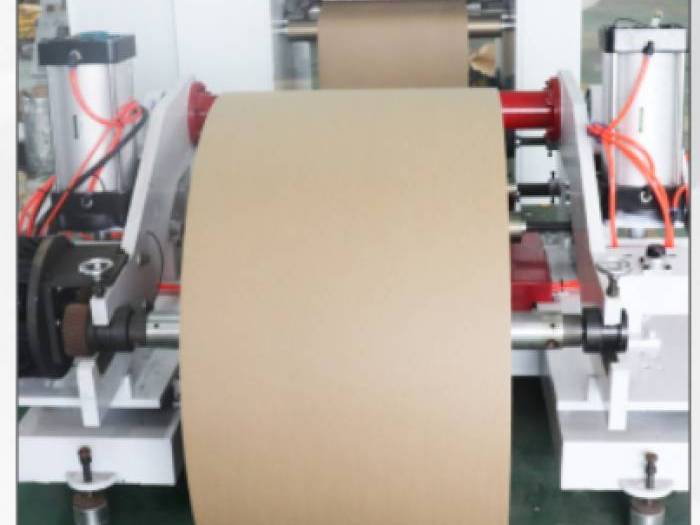

1.Unwind unit:

Roll outside diameter Φ1200mm

Unwind tension control:10kg magnetic powder, Automatic tension control

Loading and unloading:3 inch air shaft, pneumatic

Edge correction: Automatically

2.Rewind unit：

Single station rewind diameter 1200mm,5.5kw inverter motor

Tension display:PLC control

Loading way:3 inch air shaft

Material change by manual

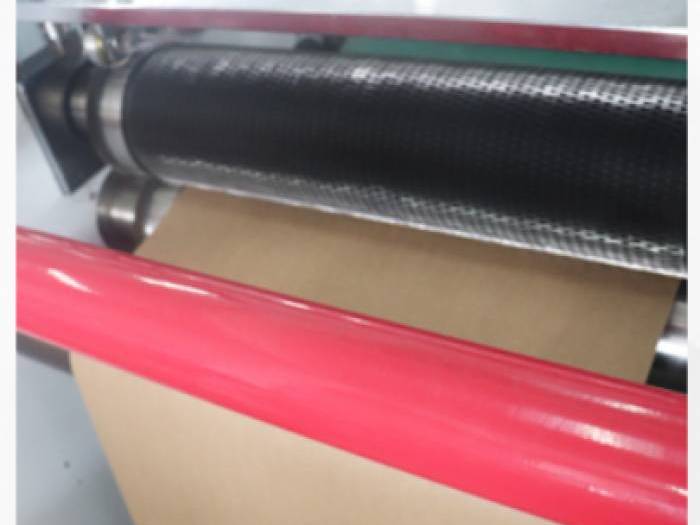

3.Cutting unit：

Upper cutting roller:152x720mm

Down cutting roller:154x720mm

Main motor:4kw, 1 set

4.Main drive:

Structure: upper cutting roller down cutting roller

Main panel

The drive mode is the synchronous belt drive

Guide roller: aluminum guide roller brown color dynamic balance

5.Auxiliary unit:

Main machine pressure: air cylinder with manual fine adjustment

Tool box

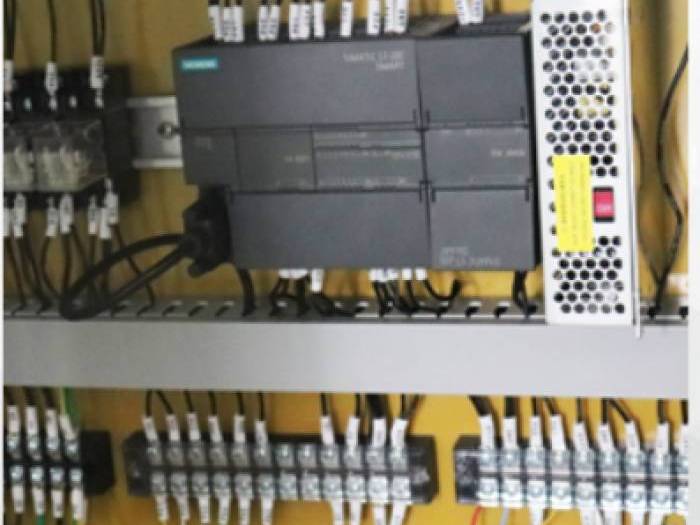

PLC control

7-inch touch screen
