Horizon SPF-200A FC-200A VAC-100a VAC-100m (2007)

Confecção de livretos Machine

Estado atual: In production

Ultima actualizacio: 22-09-2026 | Viewed: 41 times - Enquiry's: 0

PD Ref: 144587

Dealer Ref.# 23296

Idade: 2007
Tamanho: 50 x 35 cm (19 x 13 inch)

Important: Very Good

Descricio:

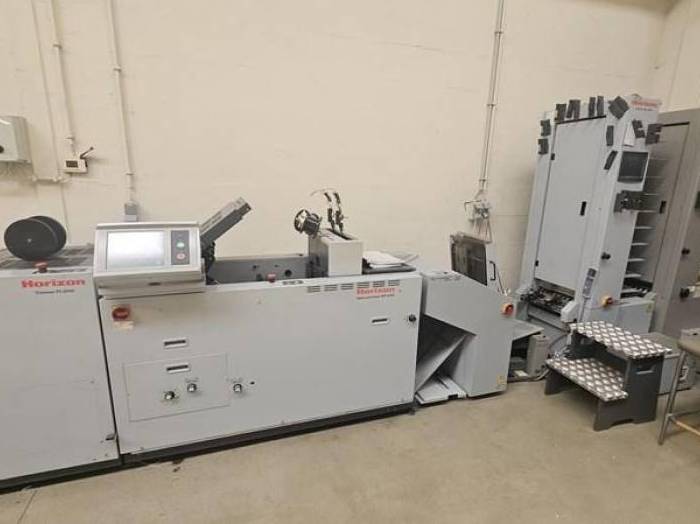

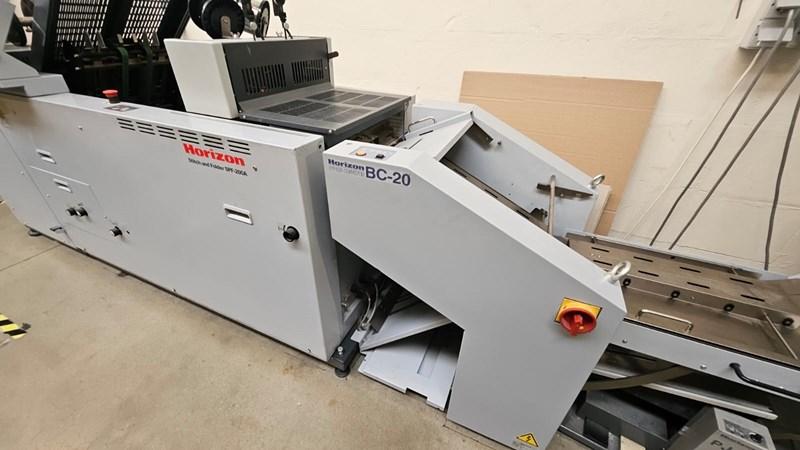

Booklet Production HORIZON SPF-200A FC-200A VAC-100a VAC-100m

This used Horizon booklet system is a powerful machine for professional production of saddle-stitched booklets. It consists of these main parts:
- SPF-200A stitching unit
- FC-200A front trimmer
- 2 VAC-100a and VAC-100m collating towers with 20 feeding stations total

Key features:
- Fully automatic: Efficient and automated booklet production
- Modular: Can add more collating towers to increase capacity
- Flexible: Handles offset and digital prints, good for small to medium runs
- Automatic format setting: Quick setup for different sizes
- High speed: Up to 9,500 sets per hour
- Error prevention: Checks for missing/double sheets and jams
- Expandable stitching: Can upgrade to 4 stitching heads and loop stitching

Technical specs:
- Input size: max 508 x 356 mm, min 180 x 105 mm
- Final booklet size: max 250 x 356 mm, min 85 x 105 mm
- Paper weight: 64 to 300 gsm
- Booklet thickness: max 25 sheets / 100 pages 80 gsm
- Speed: Up to 4,500 A5 or 4,000 A4 booklets per hour
- Stitching: Standard 0.4-0.5 mm wire, optional 0.6 mm
- Collating towers each :
- 10 stations
- Size: max 500 x 350 mm, min 148 x 120 mm
- Paper: 40-250 gsm
- Capacity: 55 mm per station
- Speed: Up to 9,500 sets/hour
- Power: 230V/50Hz
- Weight: About 1,365 kg
- Size: About 3,450 x 810 x 1,250 mm L x W x H

All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.

Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
