Kolbus BLT 200 BLW 200 (2024)

Caixa E fazer Machine

Estado atual: In production

Ultima actualizacio: 28-09-2026 | Viewed: 31 times - Enquiry's: 0

PD Ref: 144712

Dealer Ref.# 1112

Idade: 2024
Tamanho: 74 x 0 cm (29 x 0 inch)

Important: as is

Descricio:

KOLBUS Box Production Line BLT 200 BLW 200

year 2024

For the automatic production of raw boxes from cardboard blanks as well as the lamination of the boxes.

The BLT 200 is used for uprighting punched and grooved cardboards and the BLW 200 is used for laminating boxes.

Overview:

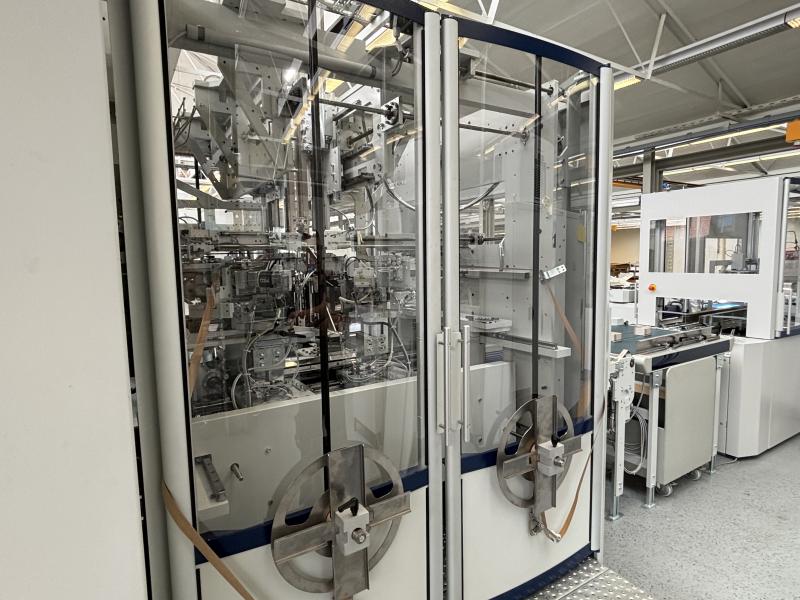

BLT 200 box line taper

BLW 200 box line wrapper

Configuration:

BLT 200 box line taper

· copilot system with touch screen

· cardboard feeder

· uprighting channel

· 1 set of format variable reinforcement rails for safe uprighting of the box

· 4 heat-sealing tape stations

· 2 sets of knives 4 pcs. each

· 2 sets of counter knives 4 pcs. each

· servo-controlled drive technology based on Siemens technology

· delivery incl. inline coupling with box line wrapper BLW 200

Technical specifications:

mechanical speed: up to 40 cycles/min

cardboard height max.: 525 mm

cardboard height min.: 86 mm

cardboard width max.: 735 mm

cardboard width: min.: 86 mm

cardboard thickness max.: 3 mm

cardboard thickness min.: 1 mm

box length max.: 570 mm

box length min.: 56 mm

box width max.: 360 mm

box width min.: 56 mm

box height max.: 170 mm

box height min.: 15 mm

BLW 200 box line wrapper

· copilot system with touch screen

· cloth feeder

· hot gluing station with premelter

· glue application adjustment from the outside

· viscosity controls

· buffer zone for feeding the boxes

· cloth transport with vacuum conveyor

· camera system for precise positioning of the boxes on the cloth

· robot for positioning the boxes on the cloth

· contact pressure station

· 4 laminating stations for laminating boxes

· 20 format plates 1.480 mm x 173 mm x 18 mm

· servo-controlled drive technology based on Siemens technology

· infeed incl. inline coupling with box line taper BLT 200

· delivery via conveyor belt

Technical specifications:

mechanical speed: up to 40 cycles/min

box length max.: 570 mm

box length min.: 56 mm

box width max.: 360 mm

box width min.: 56 mm

box height max.: 170 mm

box height min.: 15 mm

cardboard thickness max.: 3 mm

cardboard thickness min.: 1 mm

cloth length max.: 815 mm

cloth length min.: 120 mm

cloth width max.: 605 mm

cloth width min.: 120 mm
