Heidelberg SM 52-5 (1996)

Offset plana Machine

Estado atual: In production

Ultima actualizacio: 11-10-2026 | Viewed: 64 times - Enquiry's: 8

PD Ref: 145017

Dealer Ref.# HDSM52-596

Idade: 1996
Tamanho: 52 x 36 cm (20 x 14 inch)
Cores: 5
Impress.Count:55 mio

Latest Enquiry for this machine was from India.

Extras: Autoplate - Digital Controls - Autosize

Descricio:

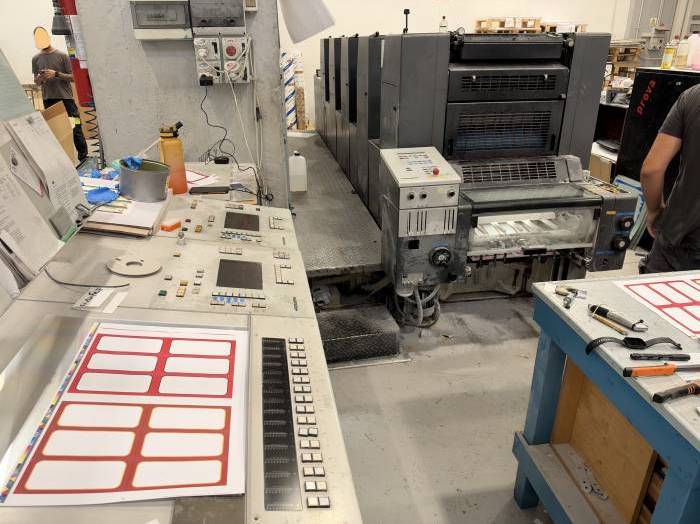

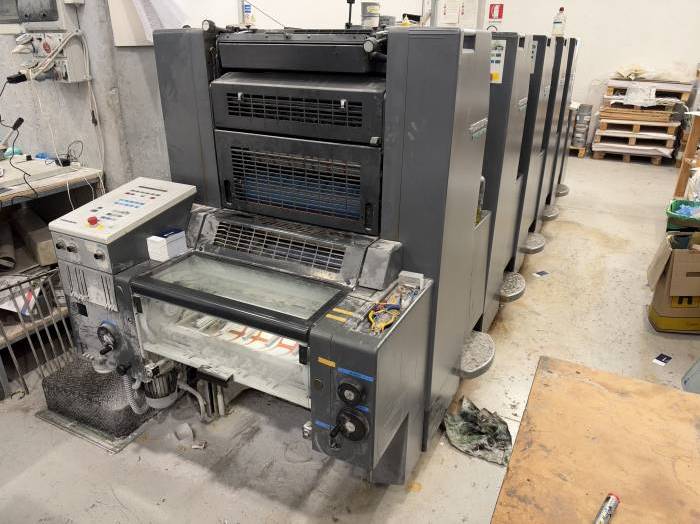

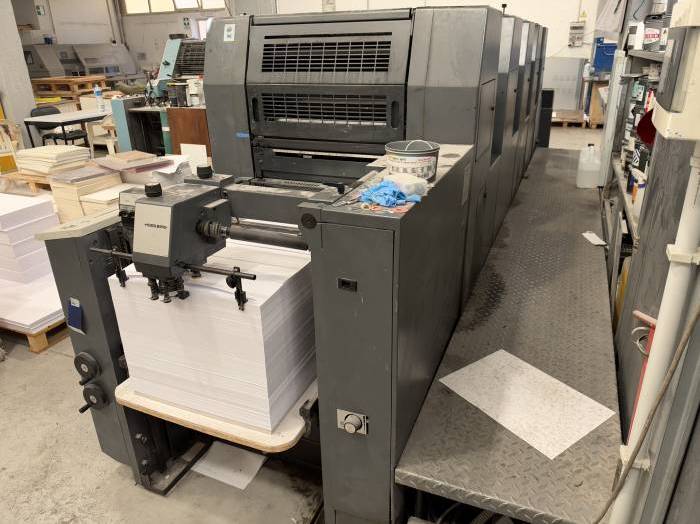

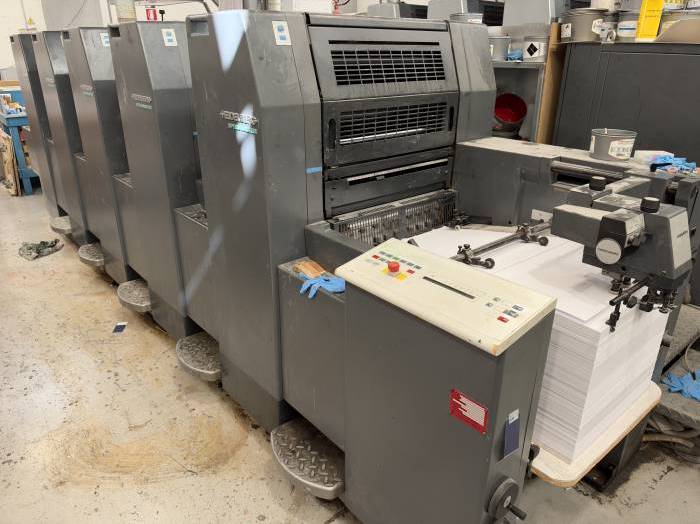

HEIDELBERG SM52-5 year 1996

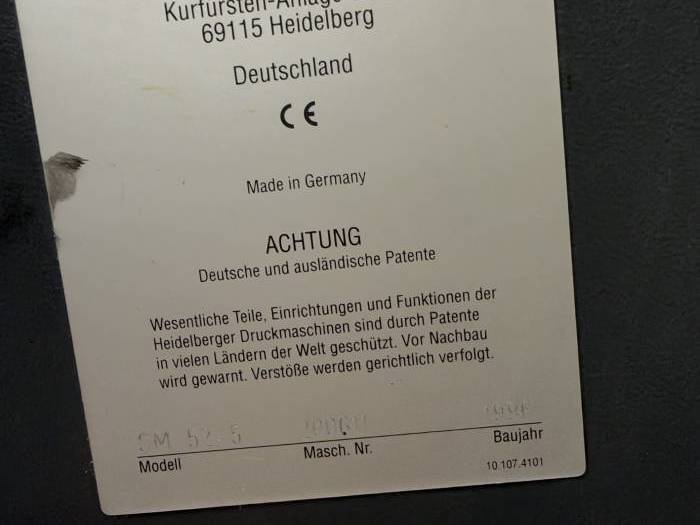

Serial 200.611

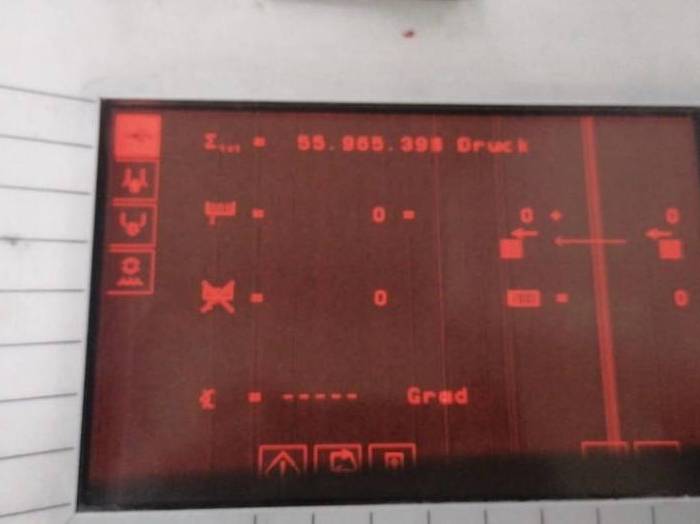

55 mio impressions
Sheet-fed offset press - 5 colors
SIze 20.5" x 14” (370 x 520 mm)
Straight machine
Technical features:
Speed 15.000 copie/h
Max paper size 370 x 520 mm
Min paper size 105 x 145 mm
thickness 0,04-0,4 mm
Print area 360 x 520 mm
Plate 459 x 525 mm thickness 0,15 mm
Blancket 535 x 460 mm thickness 1,90 mm
Dimensions:
L. 4,68 mt.
P. 1,85 mt.
H. 1,62 mt.
Power Kw 24
Weight 8.250 Kg.
Accessories included:
- Fully equipped
- 2 feeder boards
- Suction-tape feeder table
- Electronic double sheet detection
- Electromechanic double sheet detection
- Electronic side lay control, fotoelectronic and akustic

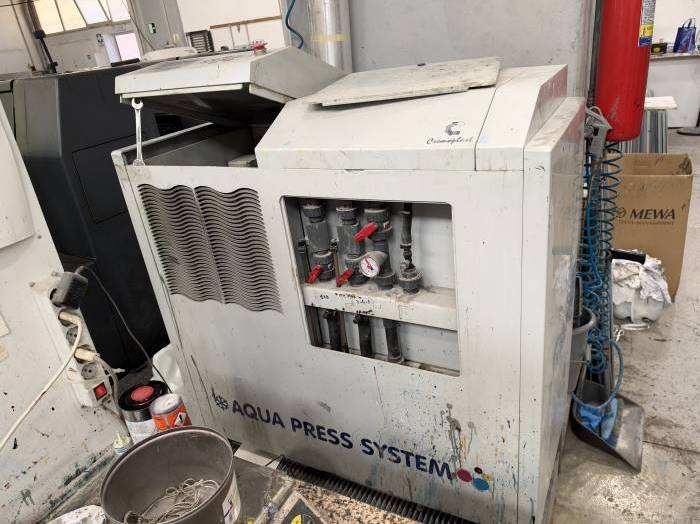

- Alcolor continuous dampening system with alcohol metering; cooling and re-circulation unit system
- Soft touch buttons edition
- Preset (autom. paper size and thickness setting)

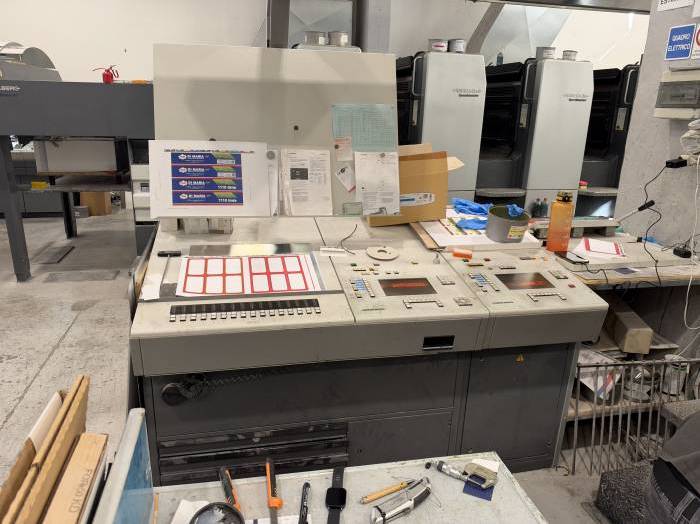

- CPC 1.04-CPTronic - Machine control and diagnosis console
(Remote inking; dampening; axial, circumferential and diagonal register control with light pen; day light illuminator and memory card for job memories)
- Programmable automatic blanket cylinders wash up via CPTronic
- Programmable automatic impression cylinders wash up via CPTronic
- Programmable automatic rollers wash up via CPTronic
- Autoplate (semi automatic plate loader) with Bacher Control 2000 register system (425mm)
- Chromed impression cylinders
- Chromed plate cylinders
- Chromed blancket cylinders
- Pneumatic compressors
- Powder sprayer device
- Low pile
- Automatic sheet de-curler
- 2 delivery trolleys
- Plus version (prepared for numbering)
- Oil drip pan, Tools, Documentations
- Complete with all standard parts and accessories
- No plate punch and bender

Conditions: Beautiful machine with no damage and good working order
Availability: Immediately
Visible: The machine can be inspected in production Test is possible. ITALY
