ML Series Die Cutting and Creasing Machine ()

---

Idade:
Tamanho: 1040 x 720 cm (409 x 283 inch)

---

Important: ML series hand feed die cutting and creasing machine, also called as clam shell cutter, is a kind of special equipment for die cutting and creasing a wide range of material, such as paper, cardboard, corrugated board, etc.

Descricio:

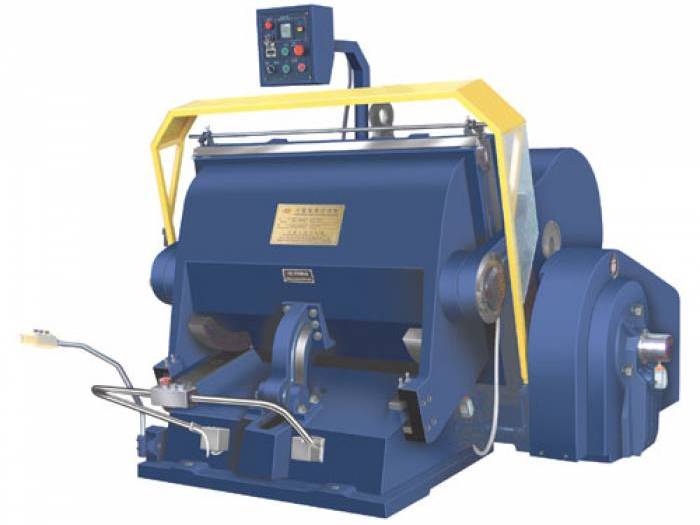

ML series hand feed die cutting & creasing machine, also called as clam shell platen die cutter, it is a kind of special equipment for die cutting and creasing a wide range of materials, such as paper, corrugated board, plastic sheet and leather. It is applicable to the fields of printing, packaging, decoration and plastic industries. ML series die cutter machine has been well accepted by the customers from home and abroad due to its outstanding performance, reliable in quality, easy for operating and low cost in price. We have exported over 1200 sets of this type all around the world since 2002.

1. Sliding bearings are made of high quality alloy cooper, thus to enhance the effect of anti-friction and vibration reducing. Flywheel with big moment of force and large pressure.
2. High strength due to whole iron casting by using high quality material for machine body.
3. Single plate electromagnetic clutch is sensitive and reliable.
With functions of single piece, continuous and opening delay operating, dwell range is adjustable from 1-10seconds.
4. Operating position is reasonably designed, moving-bed can be open to its optimum.
5. Central lubrication system guarantees fine lubrication and reduce friction.
6. Safety protection system is reliable.
7. Adjustable chase clamp structure can adapt all kind of die mold plate.
8. Easy operation and maintenance.

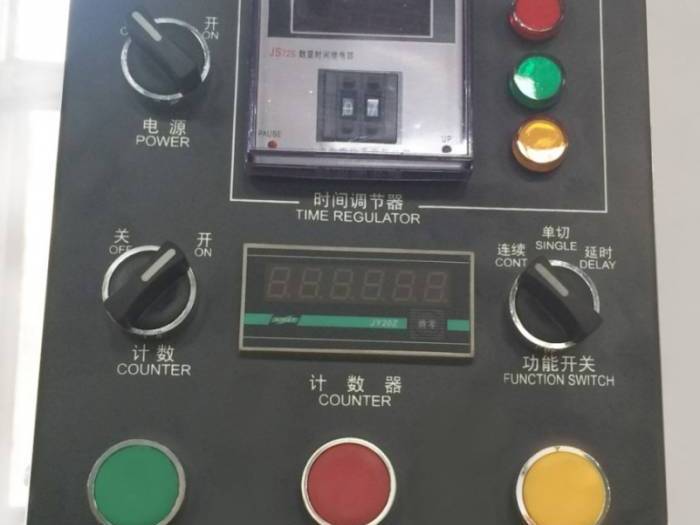

9. Electric control system is in line with international standard.
10. Optional: air clutch, safety cage, hardened cutting plate.
11. Heating plate as option for die cutting plastic sheet.
12. ML-C model is CE standard.

---
