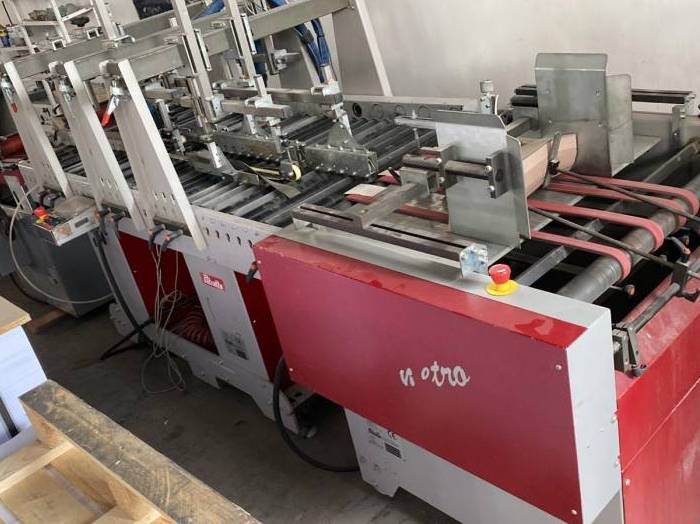

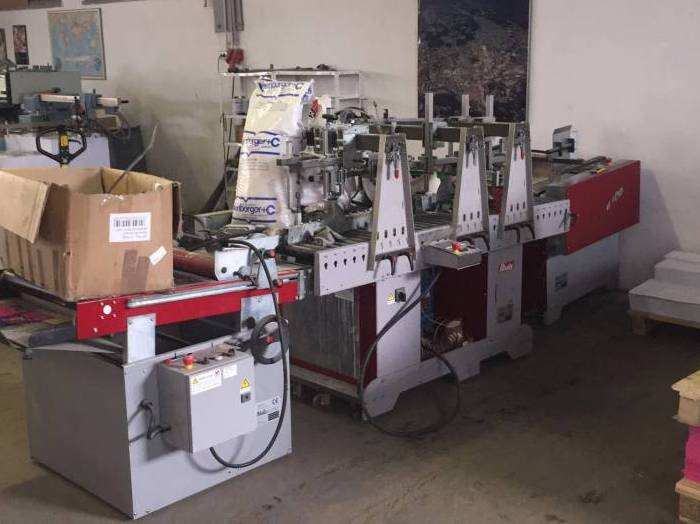

Petratto Metro 78 (2007)

Фальцевально-склеивающие Machine

Текущее состояние: Dismantled

последнее обновление: 12-03-2024 | Viewed: 849 times - Enquiry's: 13

PD Ref: 118003

Произв: 2007
Макс.размер: 78 x 78 cm (30 x 30 inch)

Latest Enquiry for this machine was from Italy.

Описание:

Configuration:

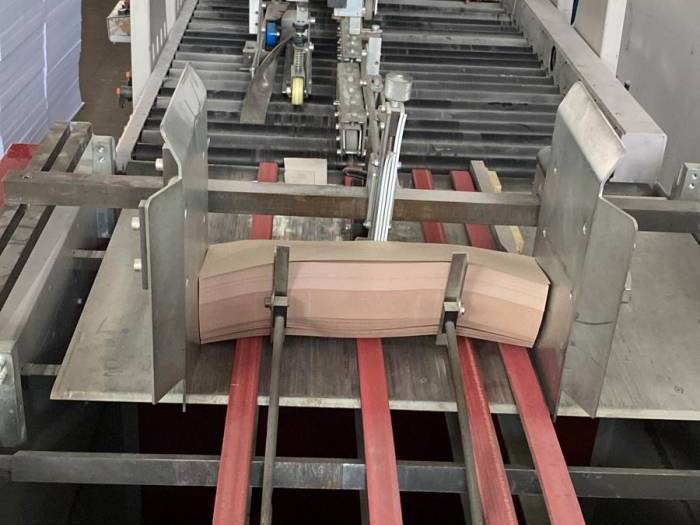

1. SD 78 Feeder

- Max. sheet size: 78 x 78 cm
- Min. sheet size: 6 x 6 cm
- Max. mechanical speed: 110 m/min

2. SE 78-2 METRO Folding-gluing station

- Touch screen programming, working functions , working cycles control, total counter
- Photo cells on feeder and delivery control the length and number of sheets on the machine
- Max. sheet size: 78 x 78 cm
- Min. sheet size: 8 x 8 cm
- Max. mechanical speed: 120 m/min

3. SC 10 Delivery

- Programmed counter from the Metro control table
- Max. sheet size: 78 x 78 cm
- Min. sheet size: 15 x 20 cm
- Max. mechanical speed: 40 m/min

4. Other components:

- IC IC-P »Nordson hot gluing system with 2 heads«
- SE 04 C »device for minor folding left right, complete with guides«
- SE 04 L »device for larger folding left right, complete with guides«
- SE 05-1 »air lift, bend distributor«
- SE 05 »upper buckle opening for folding of cardboard sheets from 250 – 500 g
