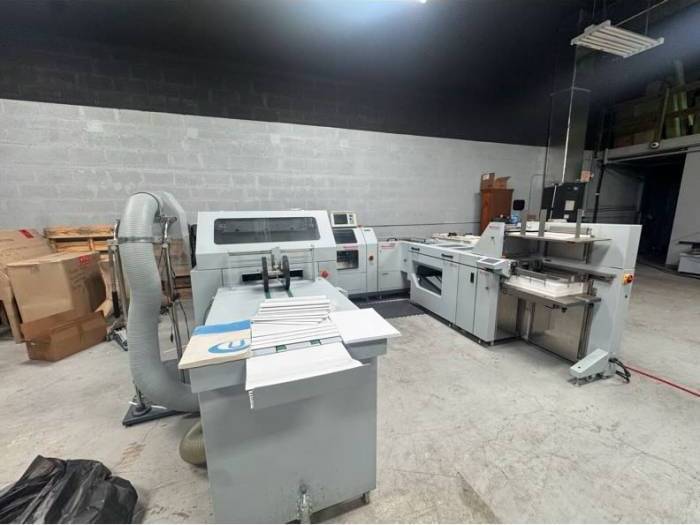

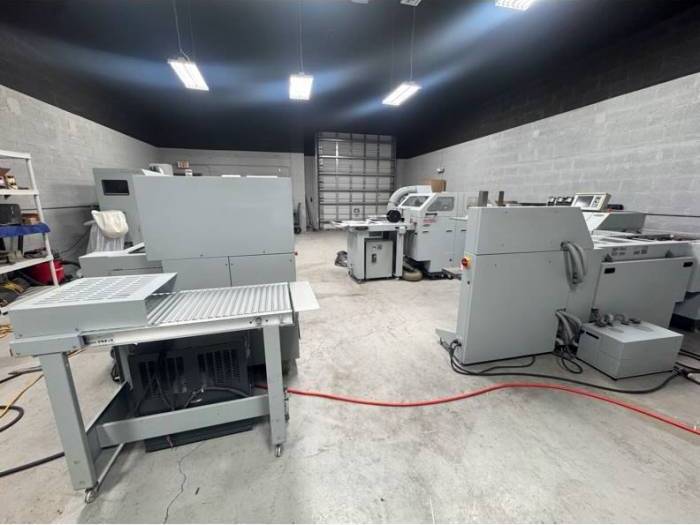

2013 Horizon 5500 Stitchlinner -HTS 30-S- with HOF 400 (2013)

ВШРА Machine

Текущее состояние: Under power

последнее обновление: 27-04-2026 | Viewed: 74 times - Enquiry's: 0

PD Ref: 140851

Произв: 2013
Макс.размер: 19 x 13 inch (48 x 33 cm)

Описание:

At up to 5,500 booklets/hr., the quick-changeover StitchLiner5500 is ideal for short, medium and long production runs. The interactive icon-based touch screen and end-to-end automation allow even less experienced operators to achieve fast, easy job set-ups and changeovers. Horizon’s 4-page signature concept eliminates the time-consuming intermediate folding process required for 8- and 16-page formats. The U-shaped layout is floor-space efficient and very convenient for the operator to monitor work in progress.

The SPF-30 can stitch a book up to 10 mm thick. An icon based touch screen on the SPF-30 sets-up and controls the complete StitchLiner system. The StitchLiner5500 is equipped with heavy-duty Hohner stitching heads for accurate, reliable center stitching.

The HTS-30 in-line three-knife trimmer provides complete, high-quality three-sided finishing in one pass. All trimming parameters are input at the centralized touch-screen with full automation. An optional center-cut device provides for two up booklet production.

Sheets are accumulated by section, scored, plow-folded, and delivered onto the saddle. The number of sheets per folded section can be varied to insure a tight fold, depending on sheet count, grain direction, or paper weight.

Specifications:

Sheet Size: Max – 350mm x 500mm (13.7in x 19.6in) Min – 140mm x 206mm (5.6in x 8.2in)
Sheet Weight Range: Normal Paper – 60 to 210 gsm Coated Paper – 80 to 210 gsm
Stitch Thickness: Max – 5mm (Book Thickness 10mm)
Stitch Distance: 66 to 150mm (2.6in to 6in)
Stitch Wire Range: 23 to 25
Booklet Size (Before Trim): Max – 350mm x 250mm (13.7in x 9.8in) Min – 140mm x 103mm (5.6in x 4.1in)
Trimming Width: 2 to 25mm (.08in to 1in)
Production Speed: 5,500 Booklets
