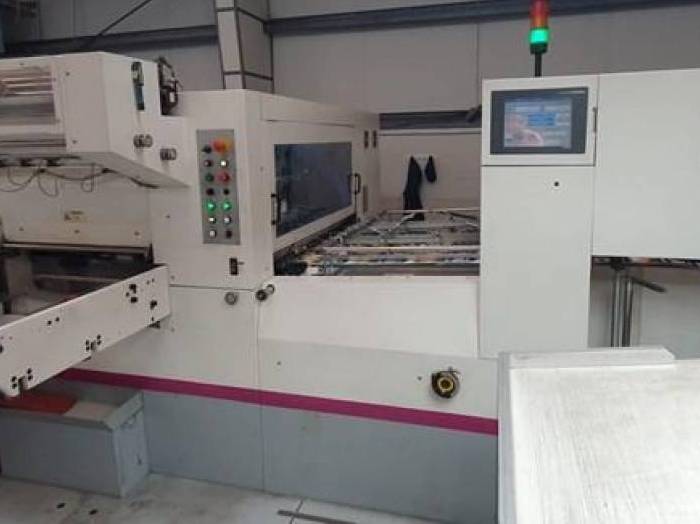

MK Masterwork 1060 ST Foil Stamping Embossing and Cu (2013)

Тиснение фольгой Machine

Текущее состояние: In production

последнее обновление: 02-06-2026 | Viewed: 119 times - Enquiry's: 1

PD Ref: 141855

Dealer Ref.# 12004

Произв: 2013
Макс.размер: 106 x 76 cm (41 x 29 inch)

Latest Enquiry for this machine was from India.

Important: Very Good

Описание:

Maximum Sheet Size 760mm x 1,060mm
Minimum Sheet Size 350mm x 400mm
Maximum Stamping Size 740mm x 1,060mm
Non-stop pre-loader
Dual function foil stamping and embossing
Cross foil pull system
Chase changer with spare heater plate
Multi foil rewind unit
20 zone heated bed
Air blowers in machine and cross directions help sheets discharge
Delivery brush rollers for longitudinal foil can be used for various width foils

Technical Information:
Gripper Margin 13 ± 4mm
Inner Chase Size 770mm x 1,120mm
Sheet Weight g/m² 90 ~ 2,000g
Sheet Thickness 0.1 ~ 2mm
Stamping Accuracy ± 0.075mm
Hologram Stamping Accuracy ± 0.20mm
Maximum Working Pressure 260 Tons
The Foil Feeding System Press 1 3 longitudinal 1 transversal
Max. Foil Diameter longitudinal 250mm
Max. Foil Diameter transversal 200mm
Maximum Stamping Speed 7,500 sheets per hour
Max. Hologram Stamping Speed 5,500 sheets per hour
Max. Feeder Pile Height 1250mm
Max. Delivery Pile Height 1050mm
Foil Width 20 ~ 1060mm
Electrical Heating System 20 heating zones, 40 ~ 180°C adjustable
