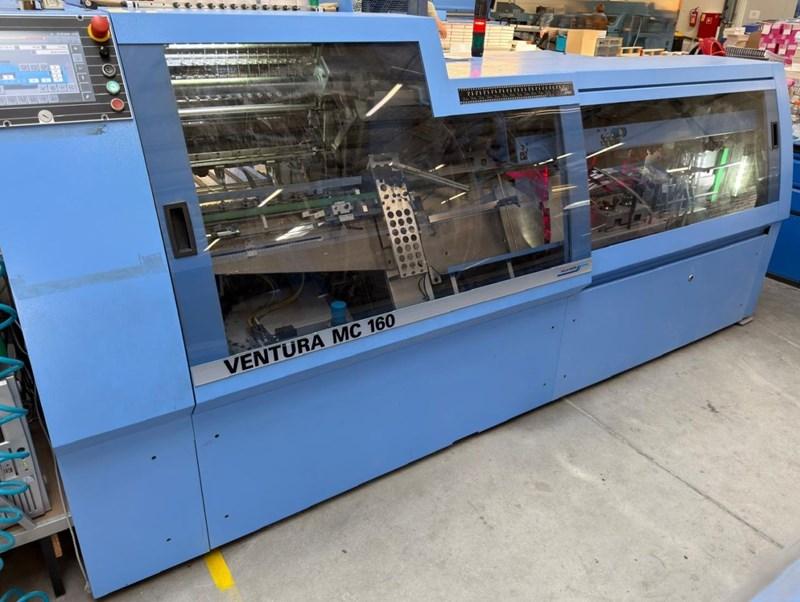

Muller Martini Ventura MC 160 (2016)

---

Произв: 2016
Макс.размер: 42 x 32 cm (16 x 12 inch)

---

Описание:

Fantastic condition - Only 11,000 hours worked!
Touch Screen
Commander control
ASIR III automatic signature control
Servo drives
11 stitches / opening 2 2
Venturi jets
Leaf chain for thin signatures
Device for thread melting
Belt delivery
Features:
Patented loop formation using blow air and an active thread cutting system
Active thread divider system as standard - this is not part of the basic equipment of any other entry-level model in the market.
It guarantees that threads are trimmed between the individual book blocks without tension.
1. The punch needles make the holes in the signature from below.
2. Sewing needles pull the thread through every other hole
3. Air blast blows the thread as a loop into the slotted lever
4. The hook needle grabs the loop. Then the hook needle and sewing needle pull the thread up simultaneously, creating the thread chain.
Wide Range of Sizes:
Designed for the most common size and fold types, it can process signatures ranging from;
120 to 425 mm in length and from 75 to 320 mm in width, and from four pages to 4 mm in thickness.
User friendly:
Job changes can be performed quickly and conveniently thanks to the display on the touch-screen with the proven job and setup wizard from Muller Martini.
Uniform icons make it easier for machine operators to get an overview of the whole machine.
With its quick job changeover times, the Ventura MC 160 is suitable for both short runs and industrial three-shift operations.
Specification:
Max signature length: 425mm
Min signature length: 120mm
Max signature width: 320mm
Min signature width: 75mm
Max thickness: 4mm
Max. speed: 9,600/hour

---

Размещенный: Europe Western

---

---

Наличное: Immediately

---

---

---

---

---
