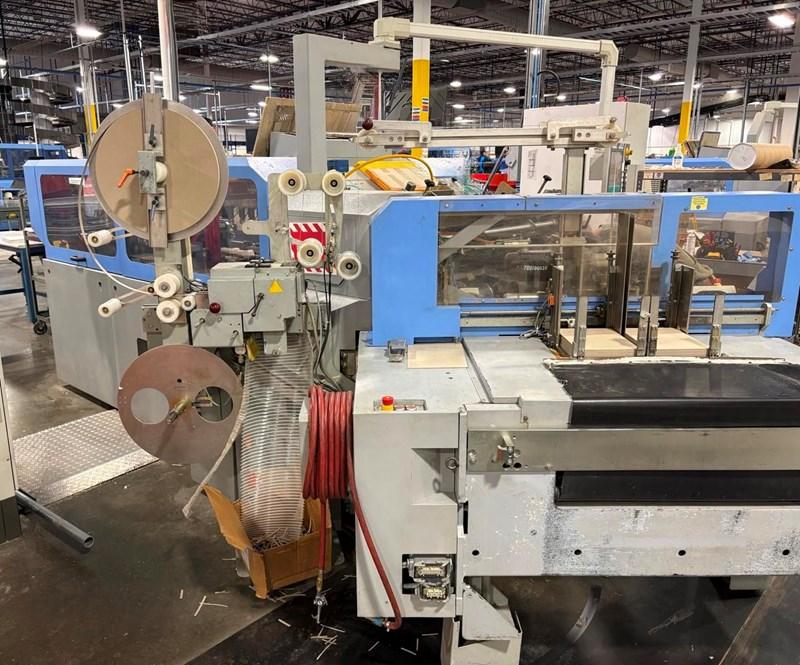

Hoerauf BDM Universal (2011)

---

Произв: 2011
Макс.размер: 72 x 41 cm (28 x 16 inch)

---

Important: Very Good

Описание:

<strong>Ref:11134 . 2011 Hoerauf BDM ‘Universal’ Case Maker</strong>
For short, medium and long runs with the shortest set-up time and the widest open case format.
Suitable for 3-piece cases, game boards, padded cases for photo albums, pocket diaries, bible cases etc.
<strong>Comprising:</strong>
LCD Screen for menu guided set-up and fault display.
Conveyor feed of pre-cut boards
Triple reel feeder for soft spines with auto-splice
Magazine feeder for stiff or hollow spines
Shingle conveyor feed of pre-cut cloth
Pre-melt tank
Mobile hot-melt gluing unit and circulation pump
Delivery with counter and roller table
DC drive motor
Complete with compressor, tools accessories.
Note: External compressed air supply - 6 bar required not included .
<strong>Specification:</strong>
Open case size standard : Max. 410 x 720 mm, Min. 105 x 170 mm
Board thickness : Max. 4 mm, Min. 1 mm
Spine width : Max. 90 mm, Min. 6 mm
Spine thickness, flexible : Max 0.6 mm, Min 0.3 mm
Rigid : Max. 3 mm, Min 1 mm
Cover material : Max. 0.3 mm, Min 0.1 mm
Mechanical speed : Max. 60/min.

---

Размещенный: Europe Western

---

---

Наличное: Immediately

---

---

---

---

---
