Horizon Stitchliner Mark III L (2020)

---

Произв: 2020
Макс.размер: 50 x 35 cm (19 x 13 inch)

---

Important: Very Good

Описание:

<strong>Ref:11141. 2020 Horizon Stitchliner Mark III L</strong>
Stitchliner with A4 Landscape capability.
<strong>Features:</strong>
Simple, fast set-ups by non-specialist finishing operators
Works from flat-sheet 4-page sections
No need to pre-fold
Integrated automatic set-up 3-knife trimmer
High quality books with sharp spine definition
<strong>Comprising:</strong>

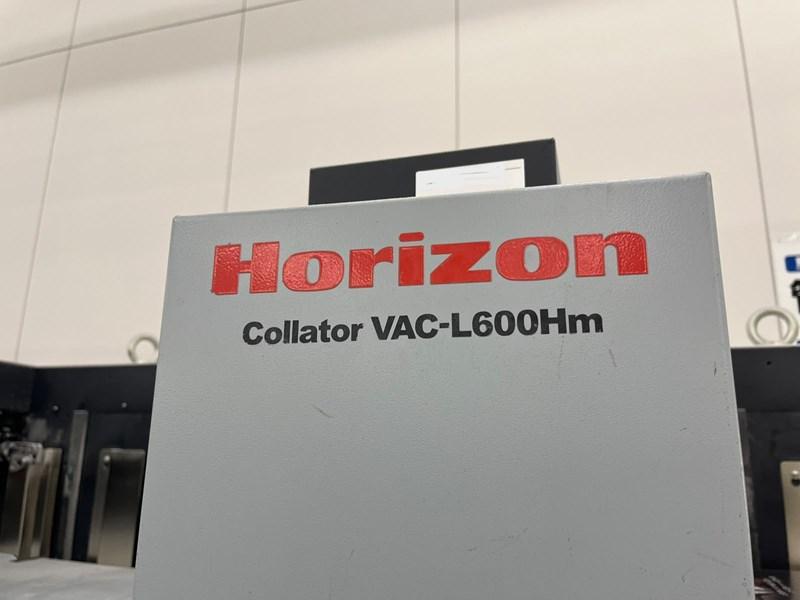

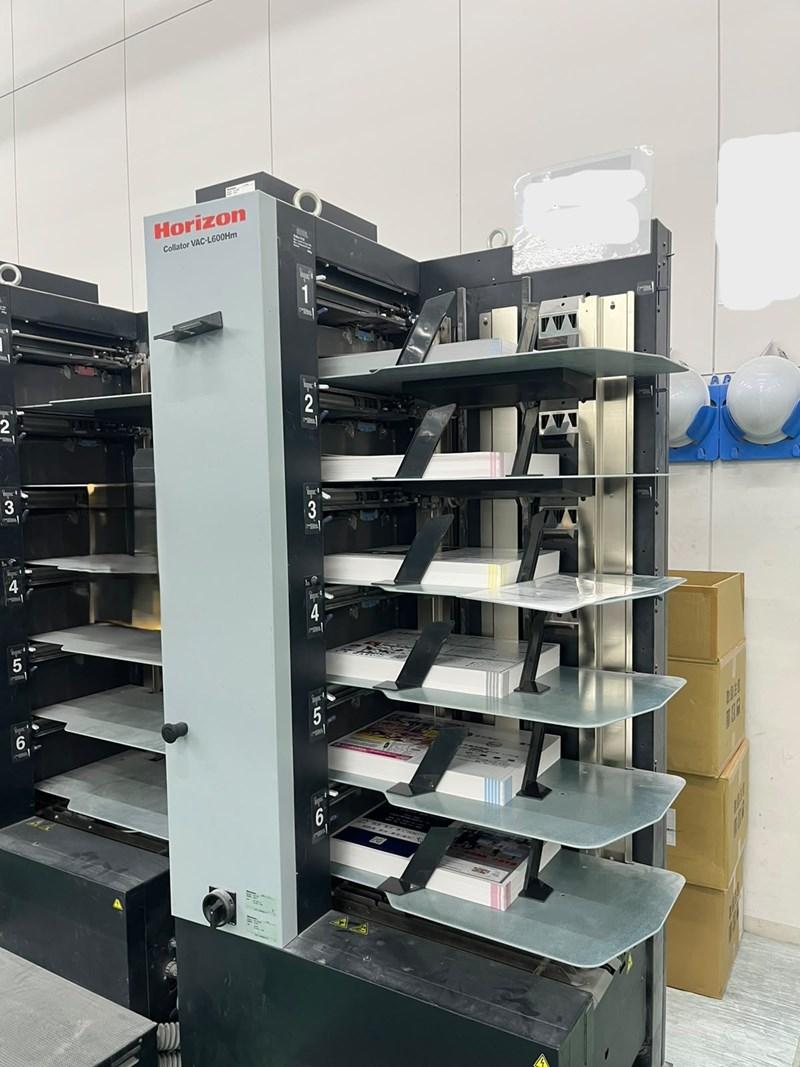

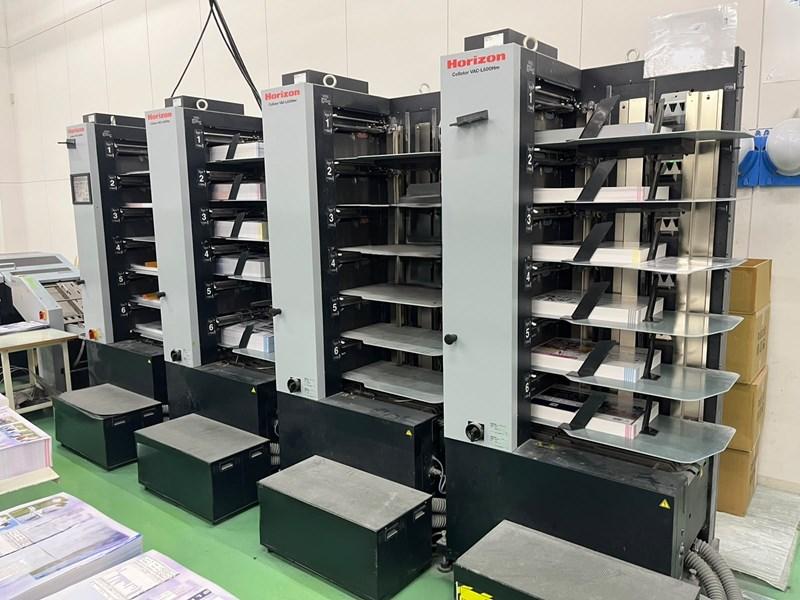

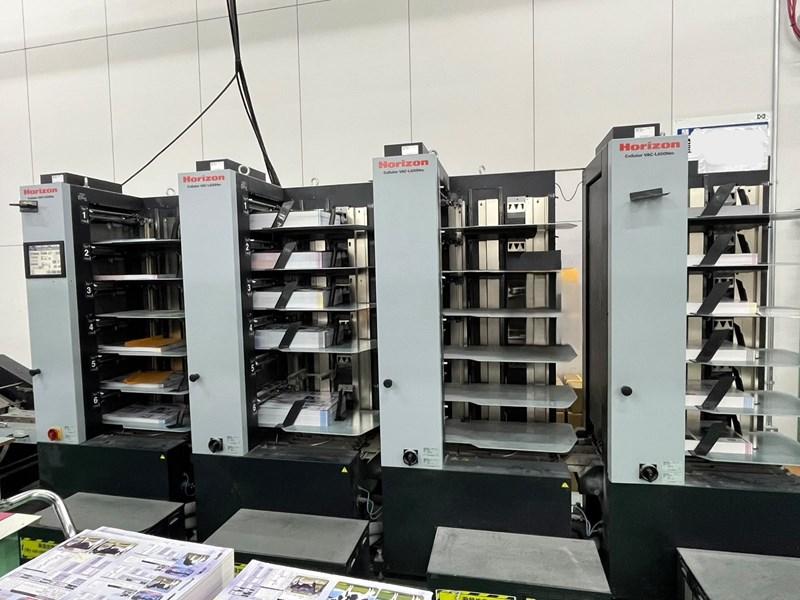

24 station 1 x VAC L600Ha 3 x VAC L600Hm 6 station tower suction collators
with touch-screen control, double- and miss-sheet control.
Accumulator/Folder ACF-40 with double gate-fold to;
SPF-40 Saddle stitcher with 2 x Hohner 43/6S stitching heads to;
HTS-40 Three knife trimmer
<strong>Specification:</strong>
Max sheet size: Portrait: 356 × 508mm
Landscape: 267 × 610mm
Min sheet size: 140 × 194mm
Finished booklet size approx :
Max: 352 × 303mm
Min: 120 × 85mm
Typical formats: A3, A4, A5, B4, B5
Paper weight: Uncoated: 52–350 gsm / Coated: 73–350gsm
Max stitch thickness: 5mm
Equivalent to ~10mm booklet thickness ~50 sheets of 80gsm
Loop stitching: Max ~3mm stitch thickness
Wire size: Typically 0.4 – 0.6mm No.24–27 range
Trim width: 2 – 25.4mm
Max trim thickness: 10mm
Max speed: Up to 6,000 booklets/hour
A4 landscape: 5,300/hour

---

Размещенный: Europe Western

---

---

Наличное: Immediately

---

---

---

---

---
