Heidelberg Eurobind 600 (2009)

---

Yaslilik: 2009
Max.Size: 36 x 30 cm (14 x 11 inch)

---

Açiklama:

Technical Data
Eurobind 600
Performance
Mechanical 600 cycles/h
Clamps
Number of clamps 1
Block formats
Block width 120 mm – 320 mm
(4.72 in – 12.60 in)
Block height 120 mm – 440 mm
(4.72 in – 17.32 in)
Block thickness 2 mm – 50 mm
(0.08 in – 1.97 in)
Signature grammage 60 gsm – 170 gsm
Cover formats
Overall cover width 242 mm – 710 mm
(9.53 in – 27.95 in)
Cover height 120 mm – 440 mm
(4.72 in – 17.32 in)
Width of front/
back cover
120 mm–330 mm
(4.72 in – 12.99 in)
Cover grammage 120 gsm – 300 gsm
Spine preparation station
Milling depth 0 mm – 3 mm (0 – 0.12 in)

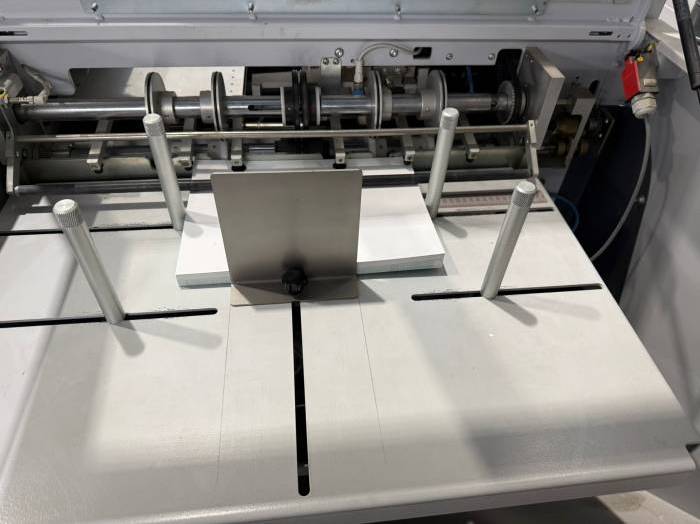

Horizontal cover feeder
Max. pile height 150 mm (5.91 in)
depending on material
Scoring Double or
quadruple
Distance between spine
and ornamental scores
6 mm (0.24 in)
Power supply in Europe
400 V, 50 Hz, 3 phases N PE/18 A (20 A)/9.9 kVA
Power supply in the U.S.
220 V, 60 Hz, 3 phases PE/25 A (25 A)/7.6 kVA
Compressed air supply
Working pressure 6 bar
Compressed air
consumption
250 Nl/min
(free of oil and water)
Dimensions and weight of Eurobind 600/600 PUR
Length × width × height 3,100 mm × 2,290 mm × 1,325 mm
(10.17 ft × 7.51 ft × 4.35 ft)
Weight Approx. 1,050 kg (2,315 lbs

---

Yer: Europe Eastern

---

---

Uygun: Immediately

---

---

---

---

---
