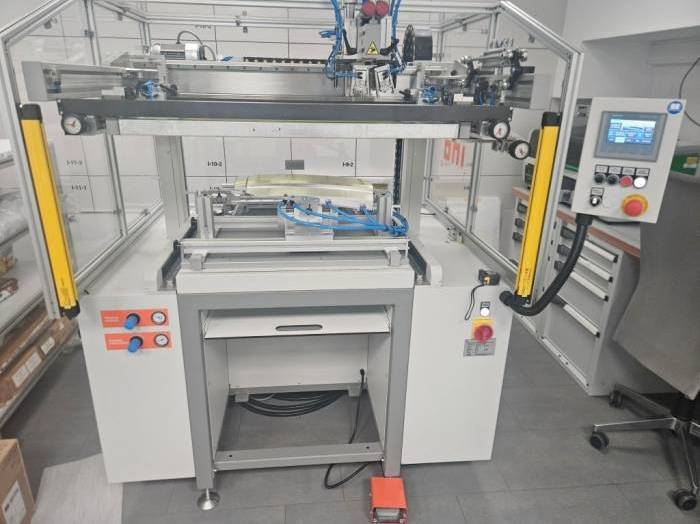

Ino Print VS 6 500 screen printing machine (2021)

---

Yaslilik: 2021
Max.Size: 50 x 35 cm (19 x 13 inch)
Renkler: 1

---

Açiklama:

3/4 used automatic screen printing machine PRINT VS6 500

The PRINT VS6 is modernly designed screen printing machine for printing on different materials (foil, paper, cardboard, self-adhesive material etc.) on vacuum table.
Easy handling, swift tool exchange, fine regulation of all for printing important parameters are just some of the equipment highlights.

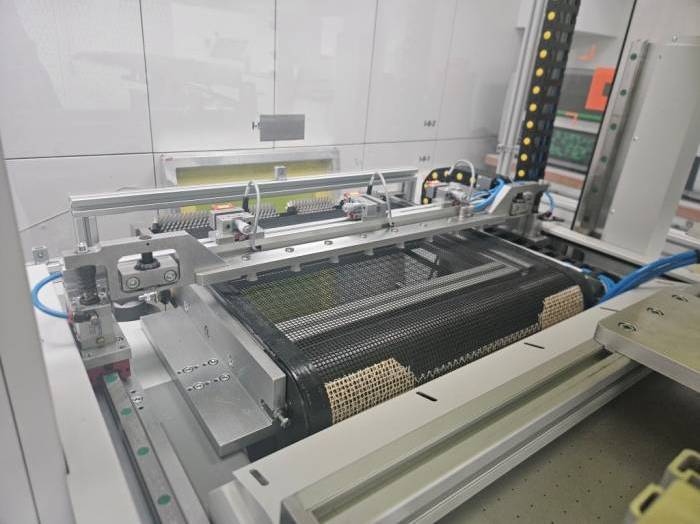

Automatic take-off device

increases productivity up to 30% and print quality as well as renders operator’s service easier as he only takes care to load printed materials. Take-off could be performed from any position of the vacuum table.

Servo drive of lifting system

servo drive saves expensive air consumption.
screen retraction when loading is adjustable up to 450 mm.
max printing object height is 400 mm.

Automatic positioning on vacuum table on previous digital print

Technical data of PRINT VS6 500:

max. sheet format 500 x 350 mm

max. print format 495 x 330 mm
material thickness For automatic off-loading: up to 2 mm
for manual off-loading: up to 400 mm
max. screen dimension 900 x 700 mm
screen frame height 30 - 40 mm
Vacuum table height 950 ±25 mm

---

Yer: Europe Central

---

---

Uygun: Immediately

---

---

---

---

---
