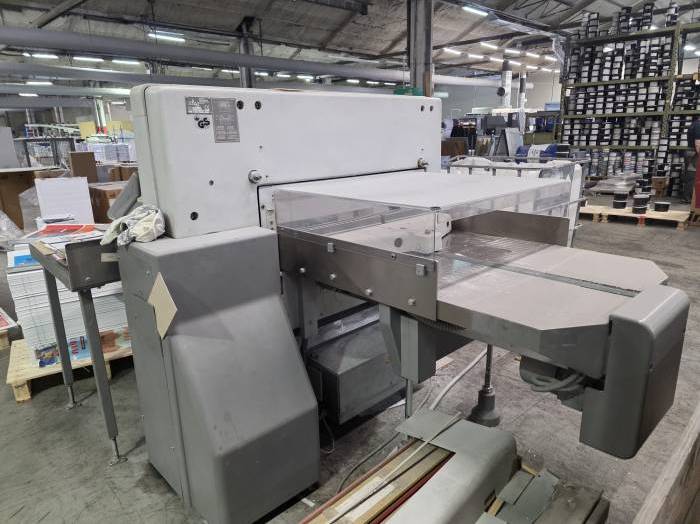

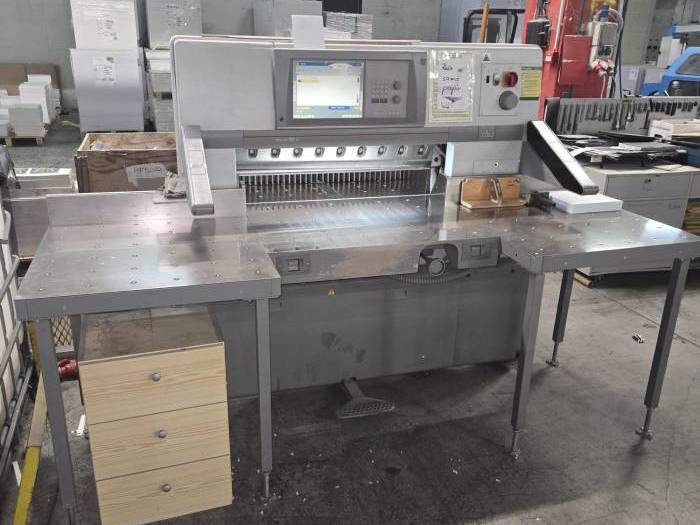

Polar 92 XT (2006)

Kağıt giyotinler Machine

Mevcut Durum: In production

Son güncelleme: 27-01-2026 | Viewed: 145 times - Enquiry's: 12

PD Ref: 137556

Yaslilik: 2006
Max.Size: 92 x 13 cm (36 x 5 inch)

Latest Enquiry for this machine was from Ecuador.

Açiklama:

Technical Specifications
Cutting Width, Max 920 mm 36.22 in
Feeding Depth 920 mm 36.22 in
Loading Height, Max 130 mm 5.12 in
Knife Speed 45 cycles/min 45 cycles/min
Smallest Cut, Automatic (without false plate) 25 mm 0.98 in
Smallest Cut, Automatic (with false plate) 90 mm 3.54 in
Clamp Pressure, Min 150 daN 331 lbs
Clamp Pressure, Max 3,500 daN 7,716 lbs
Backgauge Speed (return way) 200 mm/sec 7.87 in/sec
Nke Djydip Ujazgplst
Machine Weight approx. 2,000 kg approx. 4,400 lbs
Dimensions (Width x Depth) 1,770 mm x 2,030 mm ~69.7 in x ~79.9 in
Power Supply 380V (3 Phase, 50Hz typical)
Key Features
Control Interface: The 92 XT model features a 15-inch color touch-screen display for operation and programming.
Programming: It is a high-performance programmable model, suitable for high-end applications, with job-specific programmable parameters, label and distortion correction.
Table Features: It typically includes a chromed air table and enlarged side tables to facilitate material handling.
Safety: Equipped with safety beam guards (photocells) and an electronic knife lock for operator protection.
Backgauge Drive: Features a ball screw drive for the backgauge, ensuring precise positioning.
OptiKnife System: Allows for knife replacement from the front desktop, enhancing safety and convenience.
