PD Ref: 137598
Yaslilik: 2022Max.Size: 88 x 85 cm (34 x 33 inch)

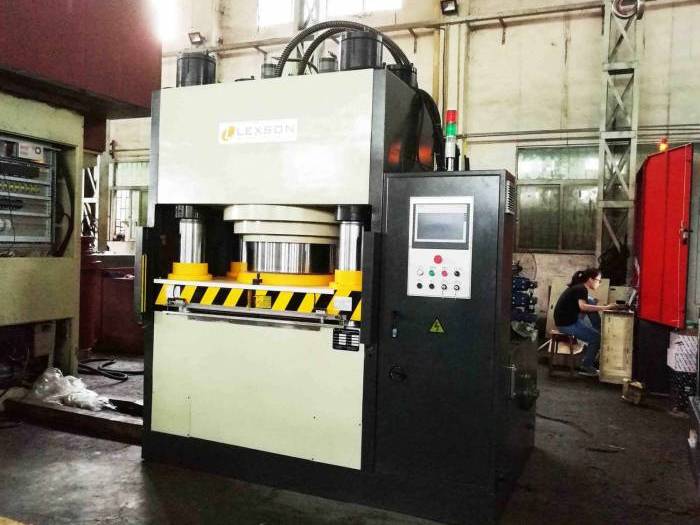

LEXSON™-A01-600T-ST Downstroke Servo Driven Jigsaw Puzzle Machine Hydraulic Pressure 25 Mpa Input Power Supply AC380V, 3 Phase, 50Hz Standard Stroke 180-200 mm Daylight Opening 180-200 mm Effective Bed Table Sizes 850x 880 mm Height of Bed Table Above Floor 900 mm Parallelism Between Platens ±0.04 mm Flatness Of Platens ±0.025 mm Pressure Repeat Precision ±1% Fast Forward Speed 200~220 mm/s Slow Pressing Speed 5~10 mm/s Return Speed 180~200 mm/s Control Siemens PLC, can be communicated and incorporated with robot (if needed) Work Mode Stroke & Pressure mode Available Operation Controls - Manual & Semi-automatic - Stroke adjustable & monitored - Pressure adjustable & monitored - Dwell time adjustable & monitored -Speed adjustable & monitored Approximate Machine Overall Size 2,300*2,630*2,300 mm Approximate Machine Weight 13,000 KG LEXSON-ISB-G01 Automatic Bagging System
Yer: Europe Eastern
Uygun: Immediately
Phone: + 0037126340475 View Dealers Machines list
Send Email
Save
Or Call: + 0037126340475 Grey Horse LTD, Latvia
