Zund G3 XL 3200 (2014)

Diğer dijital Machine

Mevcut Durum: In production

Son güncelleme: 06-02-2026 | Viewed: 252 times - Enquiry's: 1

PD Ref: 137897

Yaslilik: 2014
Max.Size: 320 x 227 cm (125 x 89 inch)

Latest Enquiry for this machine was from Türkiye.

Açiklama:

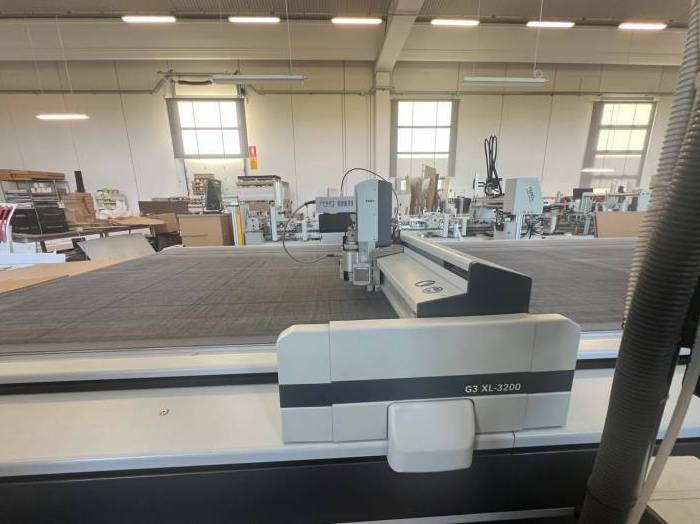

ZUND G3 XL3200:

Working size: 2270 × 3200 mm
Overall footprint: 3000 × 5400 mm

Tool Configuration:

Zund G3 XL-3200 – Year 2014

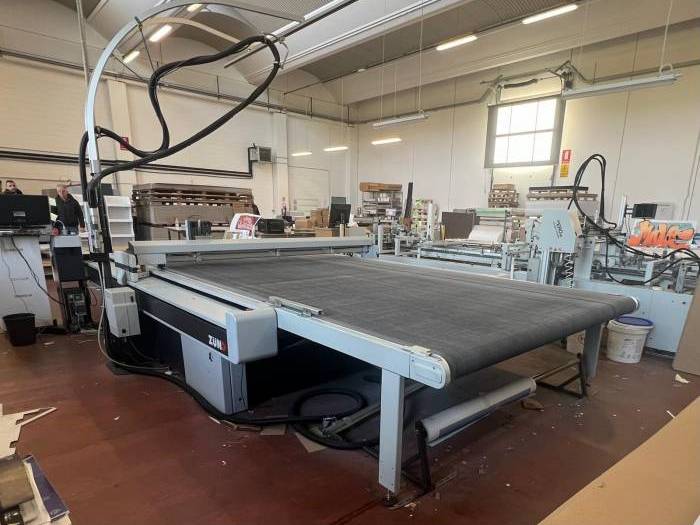

Conveyor system for automatic feeding of sheet and roll materials

1600 mm extension on the rear of the plotter for loading sheet and roll materials

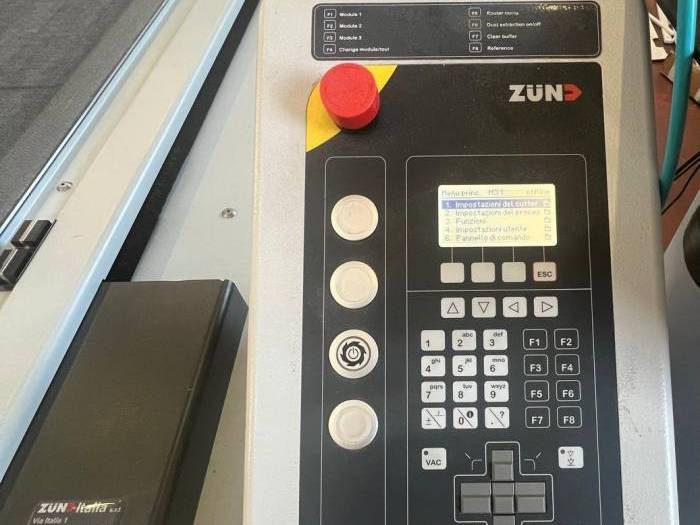

Front operator panel complete with personal computer

Zund Cut Center plotter interface software

EOT 250 tool for electric oscillating cutting of corrugated cardboard

POT tool for pneumatic oscillating cutting of corrugated cardboard

UCT tool for fixed-blade cutting for folding carton, sandwich board, and PVC

VCT tool for V-cutting on honeycomb cardboard and sandwich board

PCT tool for fixed-blade cutting for corrugated cardboard

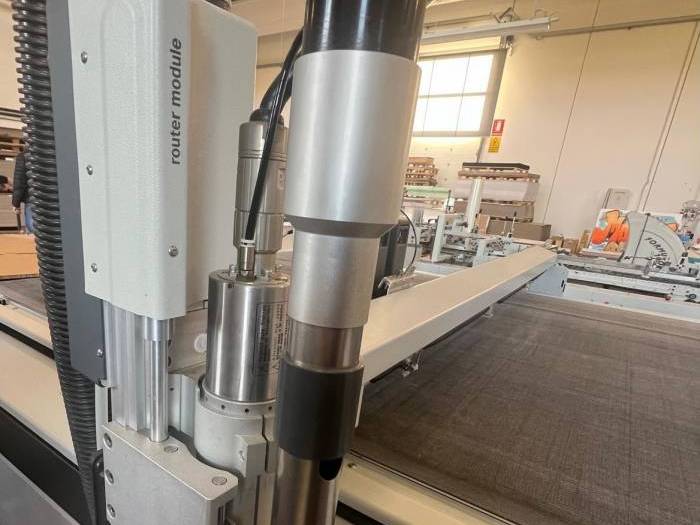

Milling tool with 1 kW power and 50,000 RPM, complete with chip extraction

CTT3 creasing tool with 90 mm wheels for corrugated cardboard

CTT2 creasing tool with 24 mm wheels for folding carton

Pen tool for drawing die-cut outlines or marking codes on cut products

Vacuum pump from 1–9 kW

Spare parts and various blades kit
