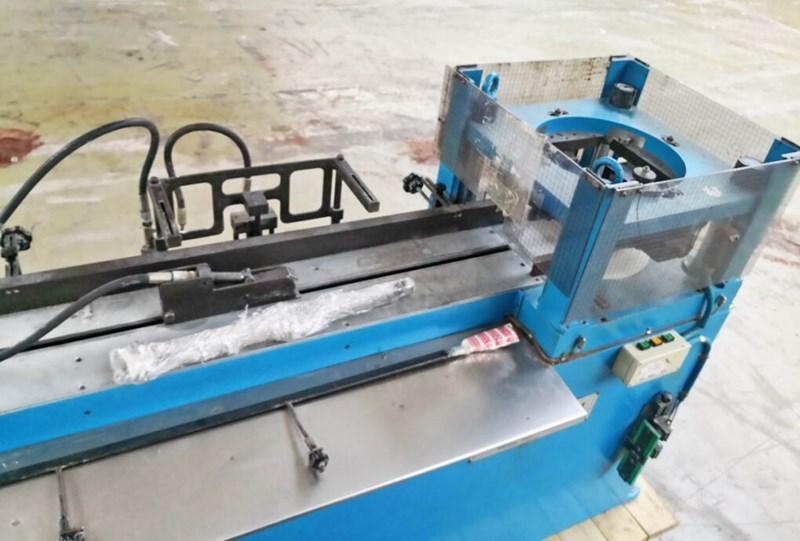

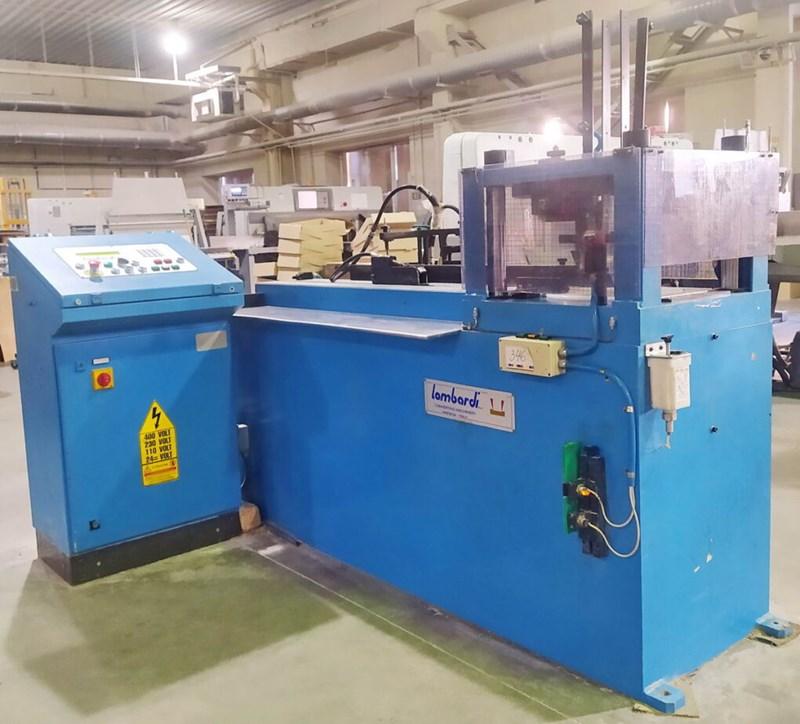

Lombardi Champion Label Punch (2001)

Kesme kalıbı Machine

Mevcut Durum: In production

Son güncelleme: 22-04-2026 | Viewed: 76 times - Enquiry's: 0

PD Ref: 140812

Dealer Ref.# 10372

Yaslilik: 2001
Max.Size: 25 x 25 cm (9 x 9 inch)

Açiklama:

Label size max. 250 x 250 mm
10 x 45 mm
Pile-Height 0 – 40 mm
Sheet-Thickness max. 2,5 mm
Speed 60 cuts/min.
Performance: up to 400.000 pcs/h
Positioning accuracy: 0,02 mm
Stamp adjustment: 2 -3 °
Puch power 78.000 N
Power consumption: 5,7 kW
Current consumption: 12 A 380V, 50Hz
Working area: 960 x 2.900 mm
Weight: 1.250 kg

Equipment

Semi-automatic label die-cutting machine
Hydraulic operation
Die-cutting of labels from pre-cut strips of material
The stack of labels is secured by a clamping device and fed horizontally
into the die-cutting head
Die-cut labels are transported upwards by the tool and removed by
the operator
Separate control panel with 2-button safety release
Technical documentation
